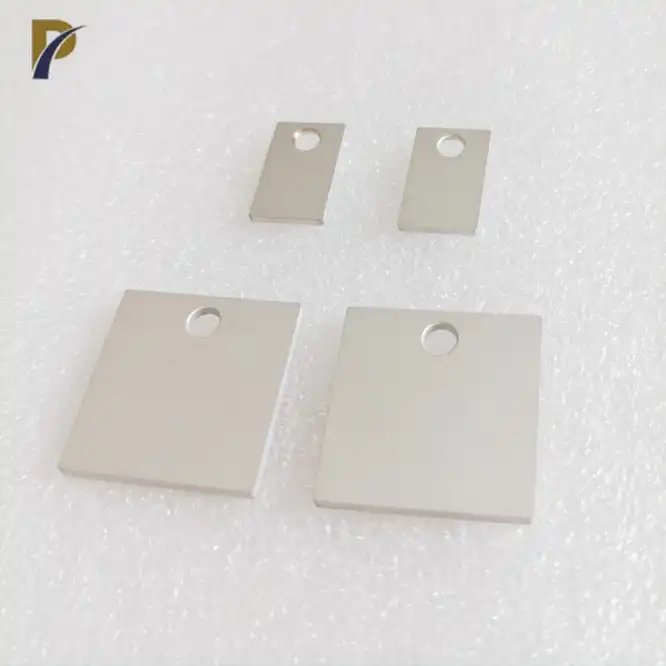

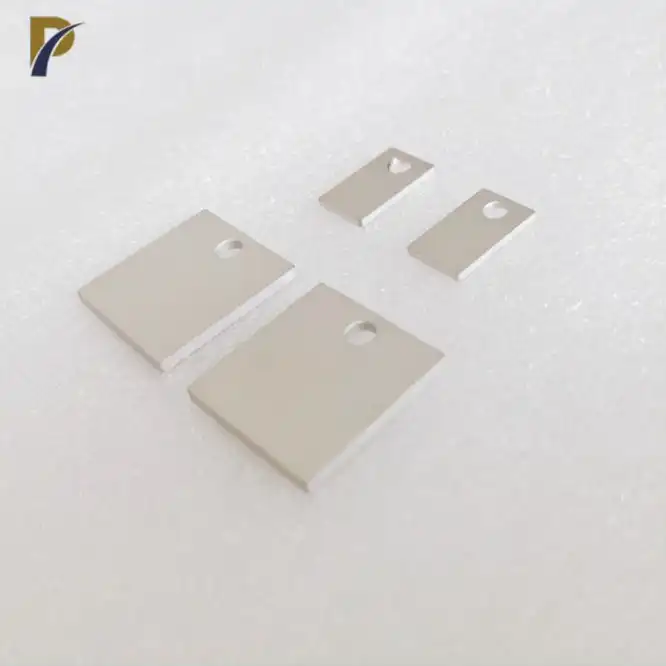

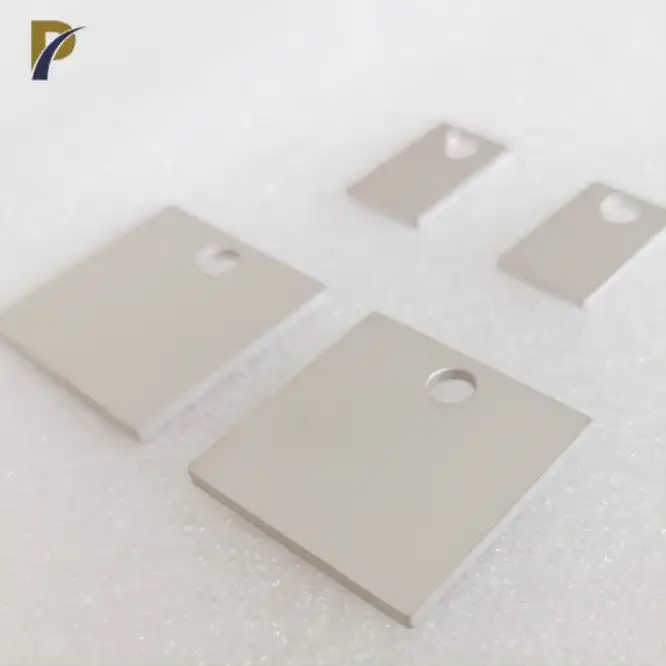

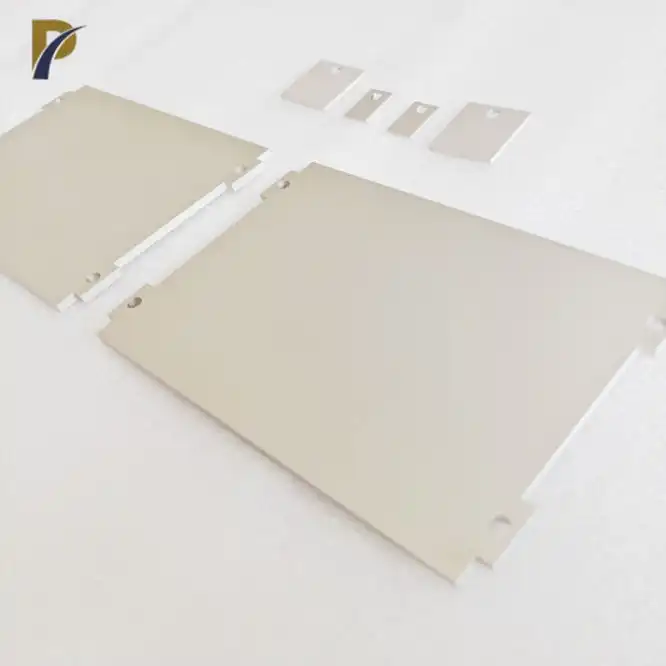

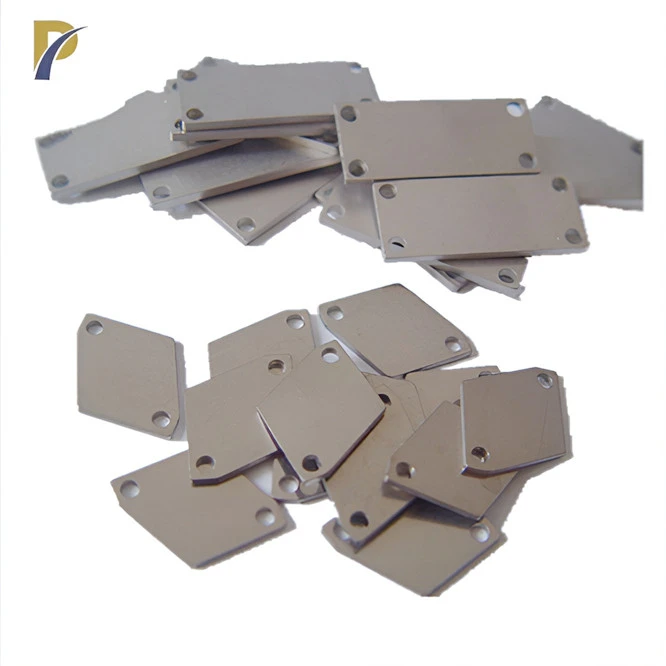

molybdenum alloy with copper
Thickness: 0.5~20mm
Width: 50~100mm
Length: 100~200mm
Density: 9.64~9.98g/cm3
Thermal Conductivity: 160~280 W/M·K
Conductivity: 0.034~0.05 μΩm
Plating: Nickel Or Silver
Shape: sheet,plate
Application: machinery, electricity, electronics, electric vehicles, metallurgy and other industries.
PRODUCT DESCRIPTION
Product Introduction
Molybdenum alloy with copper is widely recognized in various high-performance industries due to its exceptional thermal and electrical conductivity, combined with the strength and hardness of molybdenum. The integration of copper and molybdenum offers a unique blend of characteristics, making this alloy indispensable in applications like heat sinks, electrical contacts, and structural components in extreme conditions.
At Shaanxi Peakrise Metal Co., Ltd., we specialize in the production of molybdenum alloy with copper, offering high-quality products that meet the demanding specifications of global markets. With over a decade of experience, our company is at the forefront of non-ferrous metal production, including tungsten, tantalum, niobium, titanium, and more. We are dedicated to providing superior molybdenum-copper alloys tailored to the needs of industries ranging from electronics to aerospace. Our expertise, combined with state-of-the-art manufacturing facilities, ensures that we can deliver products with the precision and quality expected by our international customers.
Product Parameters Table
| Property | Value |
|---|---|
| Molybdenum Content (%) | 85 |
| Copper Content (%) | 15 |
| Density (g/cm³) | 9.87 |
| Thermal Conductivity (W/m·K) | 180-200 |
| Coefficient of Expansion (ppm/K) | 6.5 |
| Tensile Strength (MPa) | 610 |
| Hardness (HV) | 200 |
| Electrical Conductivity (MS/m) | 30-40 |
Physical and Mechanical Properties
Molybdenum-copper alloys exhibit excellent mechanical and physical properties, combining the thermal and electrical conductivity of copper with the high strength and heat resistance of molybdenum. The high melting point and low thermal expansion make this alloy ideal for high-temperature applications, while the copper content ensures good machinability and thermal performance.
| Grade |
Mo content Wt% |
Density g/cm3 |
Thermal conductivity W/m-K |
Thermal expansion coefficient ×10-6 |
Conductivity IACA% |
Hardness HV |
| MoCu50 | 50±2 | 9.54 | 250-268 | 11.3 | >55 | 140 |
| MoCu40 | 60±2 | 9.62 | 216-248 | 10.1 | >55 | 156 |
| MoCu30 | 70±2 | 9.72 | 170-205 | 8.4 | >45 | 172 |
| MoCu20 | 80±2 | 9.85 | 160-190 | 7.3 | >40 | 225 |
Product Functions

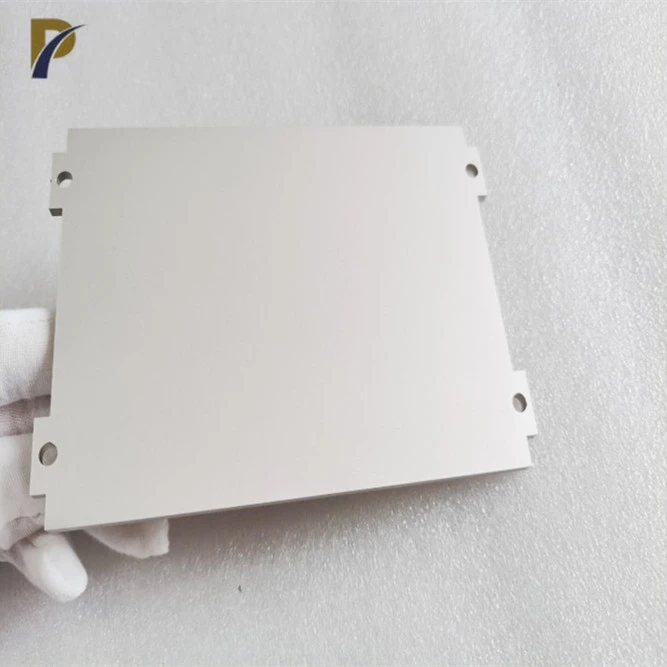

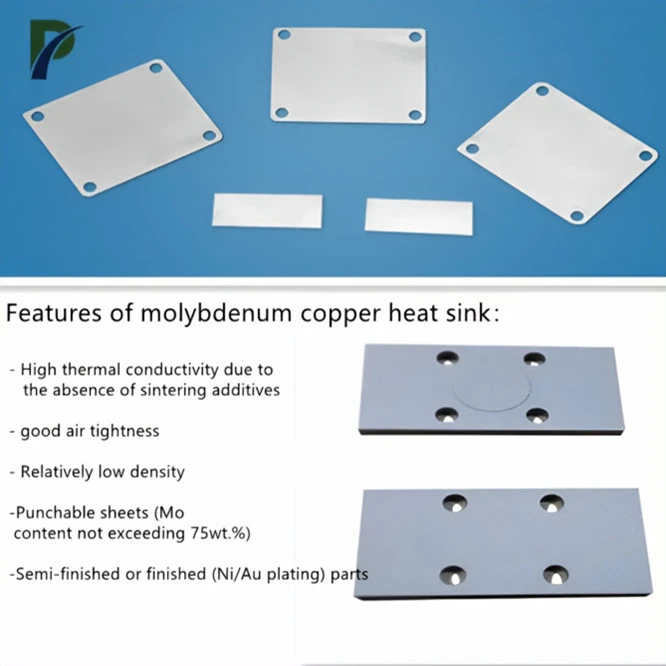

- Heat Dissipation: Molybdenum alloy with copper serves as an efficient heat sink material, thanks to its high thermal conductivity, making it ideal for applications in electronics and power modules.
- Electrical Conductivity: The alloy maintains excellent electrical conductivity, making it a preferred choice for electrical contacts and connectors in high-stress environments.
- Dimensional Stability: Its low thermal expansion ensures stability in high-temperature applications, reducing the risk of material deformation or failure.
- Corrosion Resistance: Molybdenum imparts corrosion resistance to the alloy, particularly in harsh or chemically aggressive environments.
- High Strength: This alloy retains its structural integrity even at elevated temperatures, making it suitable for load-bearing applications.
 |
 |
 |
Product Applications

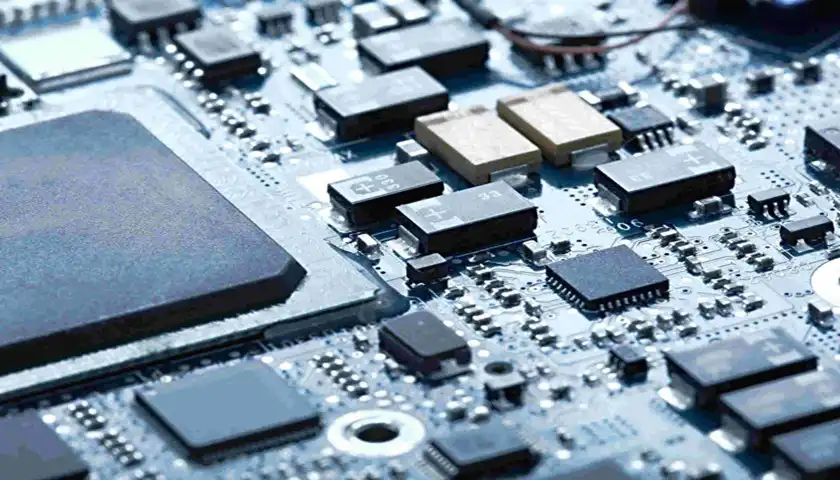

- Electronics and Power Devices: Due to its heat dissipation properties, molybdenum-copper alloys are widely used in heat sinks, power semiconductor bases, and integrated circuits.
- Aerospace Industry: The alloy's ability to withstand extreme temperatures makes it ideal for aerospace components that require high strength and low thermal expansion.
- Automotive Industry: Molybdenum-copper alloys are employed in high-performance automotive components that must endure elevated temperatures without losing strength.
- Medical Equipment: The corrosion resistance and biocompatibility of molybdenum-copper alloys make them suitable for use in advanced medical equipment and implants.
- Nuclear Power: Its structural stability and heat resistance make it an excellent material for applications in nuclear reactors and other high-radiation environments.
 |
 |
Product Process and Production Flow
The production of molybdenum-copper alloy involves several key stages:
- Powder Preparation: High-purity molybdenum and copper powders are mixed in precise ratios to achieve the desired alloy composition.
- Sintering: The mixed powders are sintered in high-temperature furnaces to form a solid and uniform alloy, ensuring homogeneity and structural integrity.
- Melting and Casting: The sintered alloy is melted and cast into desired shapes using vacuum arc melting or plasma electron beam melting furnaces.
- Machining: The cast products are then machined to precision dimensions using advanced CNC machines, ensuring tight tolerances and surface finishes.
- Quality Inspection: Each batch undergoes rigorous testing for mechanical and physical properties to ensure it meets industry standards and customer requirements.

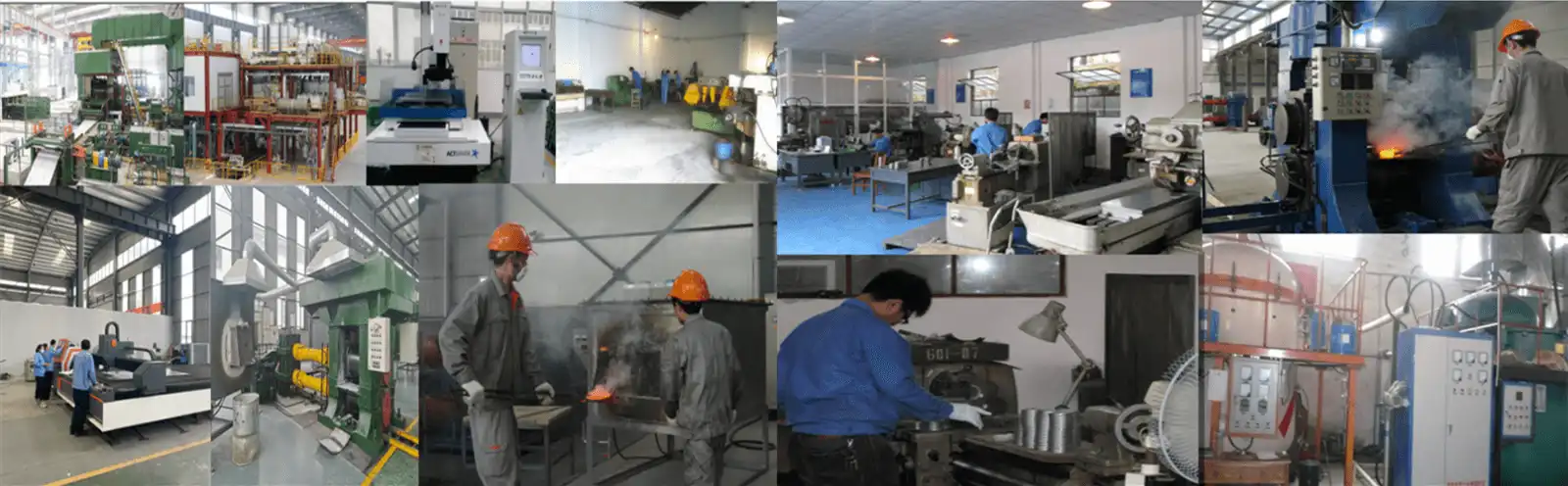

Our Factory
Shaanxi Peakrise Metal Co., Ltd. operates a state-of-the-art manufacturing facility equipped with the latest technology in metal processing. Our factory spans over 20,000 square meters and is home to a variety of production equipment, including vacuum arc furnaces, plasma welding machines, CNC lathes, and rolling mills. Our experienced team of engineers and technicians ensures that each product is manufactured to the highest standards of quality, adhering to strict ISO 9001 quality assurance protocols.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Our Quality Inspection
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Logistics and Packaging
- Wooden Crate Packaging: Designed for maximum protection during shipping, ideal for large and heavy products.
- Carton Packaging: Suitable for smaller components, with foam filling for added protection.
- Waterproof and Moisture-proof Packaging: Ensures that products are protected from environmental factors during transport.
- Custom Packaging: Tailored solutions to meet specific customer needs, ensuring products are delivered safely and securely.
 |
 |
 |
 |
 |
 |
 |
 |
Why Choose Us?
- Experience and Expertise: With over 10 years of experience in non-ferrous metal production, we have built a reputation for delivering high-quality molybdenum-copper alloys.
- Comprehensive Production Facilities: Our advanced equipment allows us to handle every aspect of the production process, from raw material preparation to finished product inspection.
- Global Reach: We have established long-term relationships with clients across the globe, providing consistent quality and reliable service.
- Quality Assurance: Our ISO 9001 certification ensures that every product meets the highest quality standards, from raw materials to finished goods.

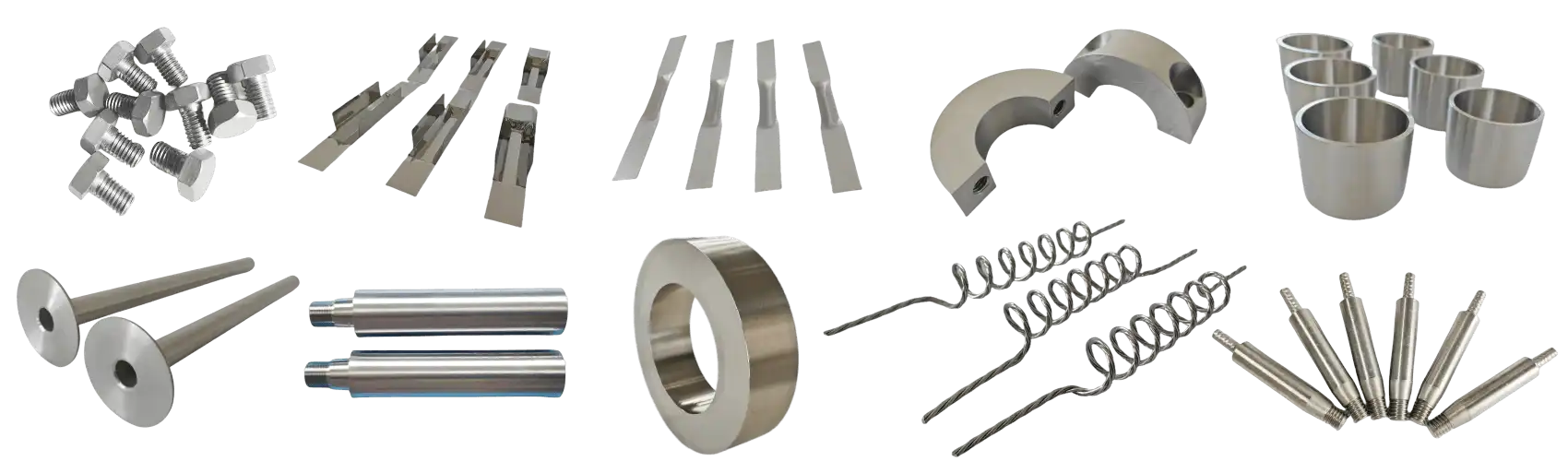

OEM/ODM Services
At Shaanxi Peakrise Metal Co., Ltd., we offer comprehensive OEM and ODM services, tailoring our molybdenum-copper alloy products to meet the specific requirements of our clients. Whether you need custom dimensions, shapes, or material compositions, our team is ready to assist with product design, prototyping, and large-scale production.
FAQ
-
What is the typical lead time for molybdenum-copper alloy products?
We aim to deliver products within 4-6 weeks, depending on order size and complexity. -
Can you provide custom alloy compositions?
Yes, we offer customization based on client specifications for both molybdenum and copper content. -
How do you ensure the quality of your products?
All products undergo rigorous testing, including mechanical and thermal property analysis, to ensure compliance with industry standards. -
Do you offer sample testing before placing bulk orders?
Yes, we provide sample products for testing to ensure that the alloy meets your application requirements. -
What packaging options do you offer?
We provide a range of packaging options including wooden crates, cartons with foam, and custom packaging solutions.
Contact Us
We welcome global purchasers to explore the high-quality molybdenum-copper alloy solutions offered by Shaanxi Peakrise Metal Co., Ltd.. For more information or to place an order, feel free to contact us at info@peakrisemetal.com. Our team is ready to provide you with top-tier products and services tailored to your specific needs.
