cleaning molybdenum strip foil

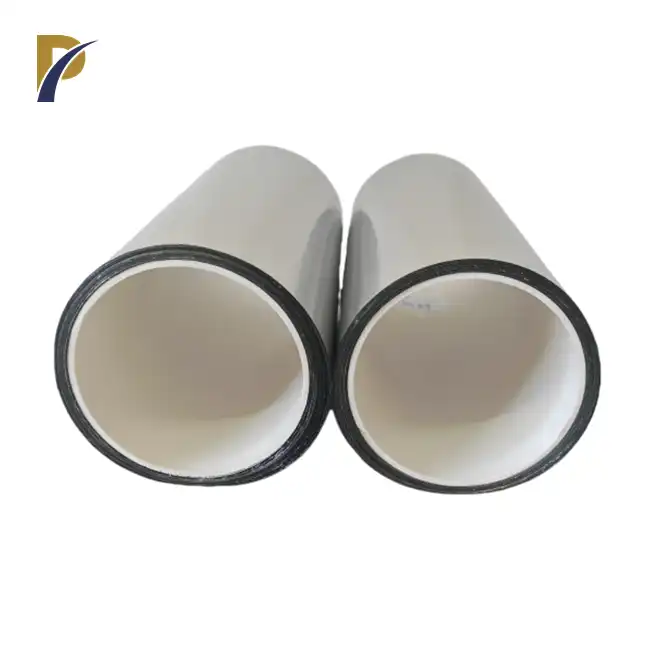

Name: Molybdenum foil strip
Material: Molybdenum And Molybdenum Alloy
Grade: Mo1,TZM,Mo-La
Purity : 99.95%
Density: 10.2g/cm3
Thickness: 0.03~1.0mm
Width: 20~300mm
Use Temperture: 1100~1800℃
Surface: Bright
Application: specialty steels. Molybdenum electrodes, vacuum furnace applications, nuclear power, missiles, and airplane parts.
Send Inquiry Download

PRODUCT DESCRIPTION

Cleaning Molybdenum Strip Foil Product Page for Shaanxi Peakrise Metal Co., Ltd.



Product Introduction



Cleaning molybdenum strip foil is a high-purity, ultra-thin material essential in various high-precision industries such as electronics, aerospace, and scientific research. Due to its remarkable properties like high melting point, excellent conductivity, and corrosion resistance, molybdenum foil is often used in situations requiring durability and performance under extreme conditions.



As a trusted supplier of cleaning molybdenum strip foil, Shaanxi Peakrise Metal Co., Ltd. offers high-quality products that meet global standards. We specialize in manufacturing molybdenum and other non-ferrous metals, focusing on precision and quality in every aspect of production. With years of experience and a growing presence in the international market, our molybdenum strip foil products are trusted by customers worldwide for their superior performance and consistency. Our clients include industries that require precision materials for high-stress environments, such as semiconductors, solar energy, and defense sectors.



Product Parameters

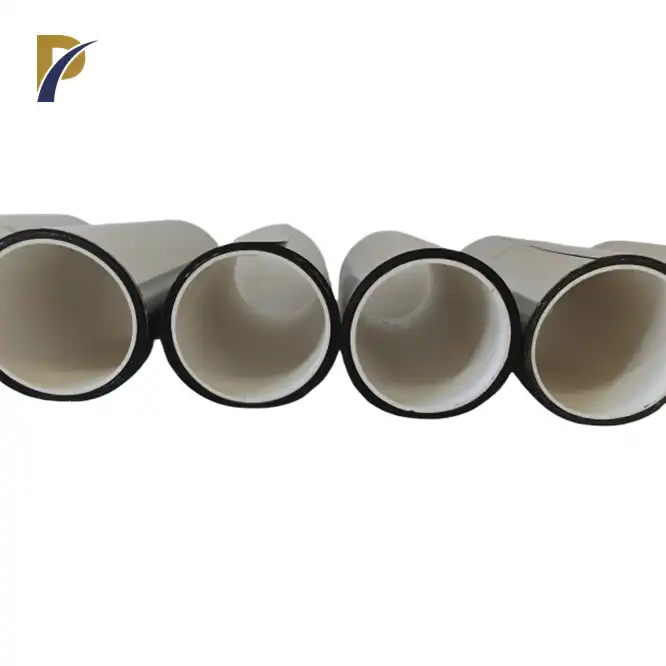

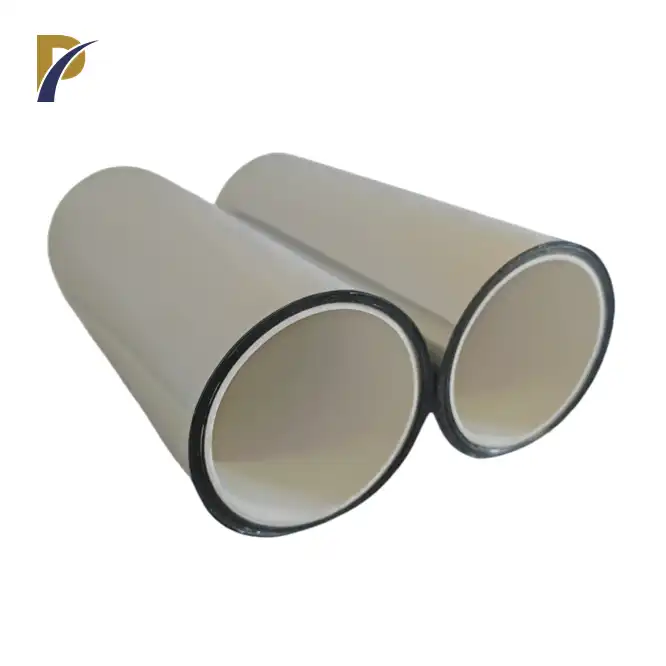

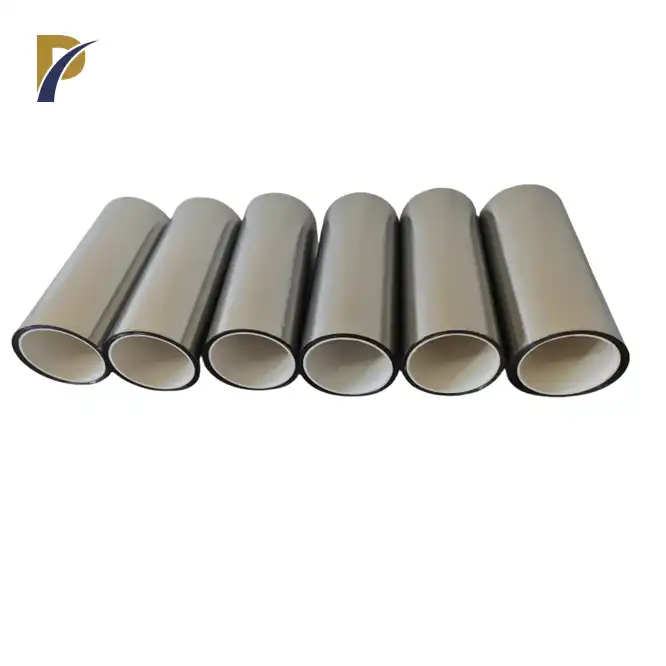

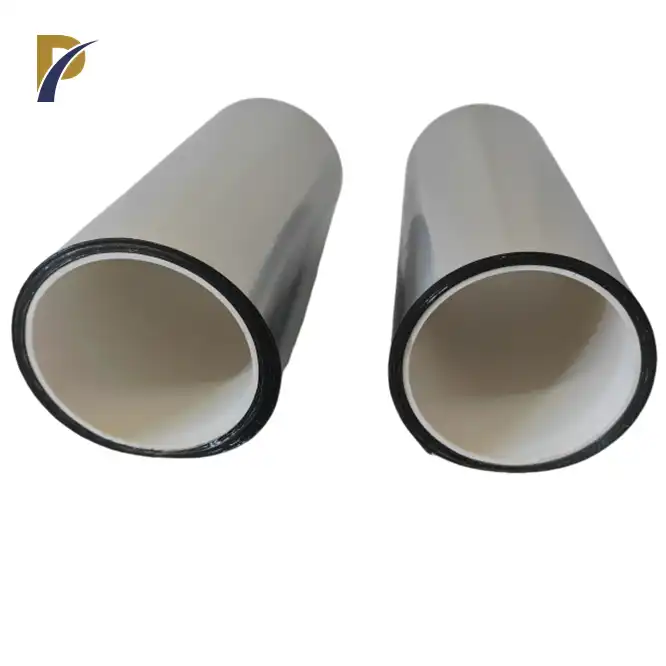

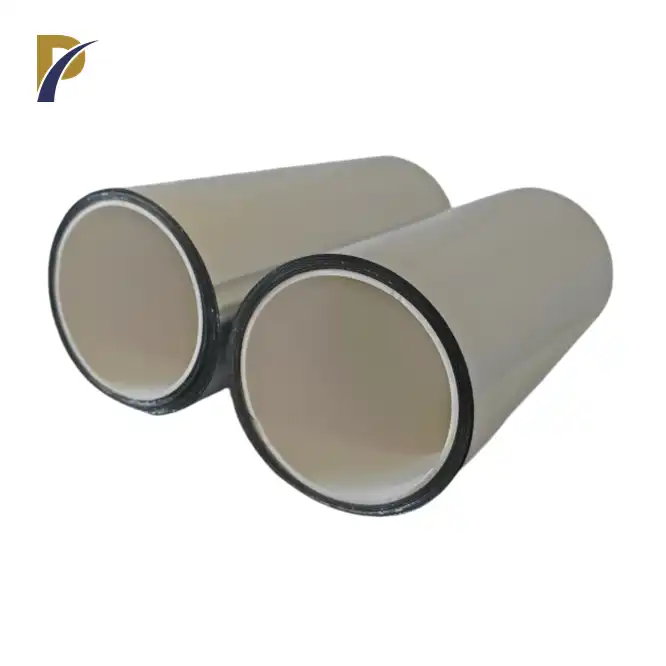

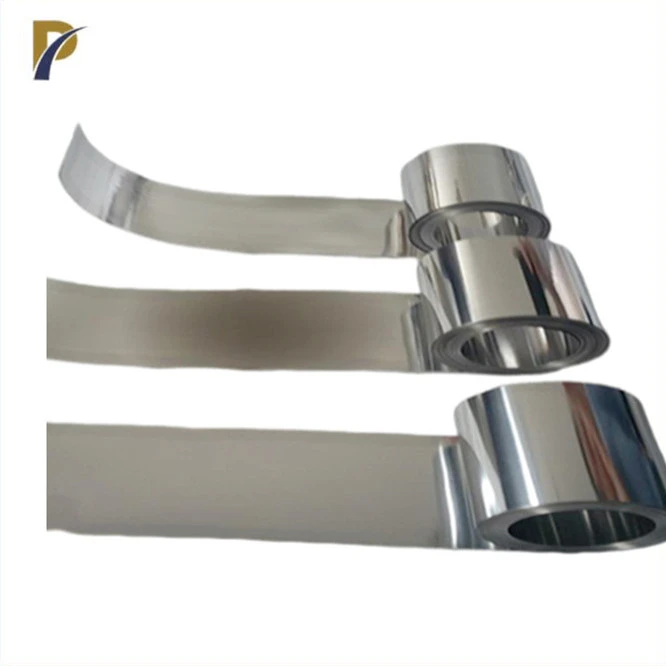

Molybdenum foil/strip in coil

density: 10.2g/cm3

Grade: Mo 1 Mo2 Mo361 Mo364

Purity: 99.95%,99.97%

Standard :ASTM B386 ,ASME SB386

Appearance: Surface can be supplied in a mirror or matte finish dependent upon thickness and width parameters.

Condition: Vacuum Anneal and un-annealed



Grade Type Condition Thickness×Width×Length/mm
Mo1 Foil/Strip cold rolled(Y)
annealing(m)		 (0.01~0.03) ×(50~120) ×(≥200)
(＞0.03~＜0.13) ×(50~240) ×(≥200)
Mo2
MoLa



Physical and Chemical Properties



Molybdenum strip foil demonstrates excellent mechanical strength and thermal stability, even under high-temperature conditions. Its high melting point of 2623°C makes it ideal for demanding applications where other materials would fail. The chemical resistance of molybdenum, particularly in corrosive environments, ensures longevity and minimal degradation over time. Additionally, its excellent electrical and thermal conductivity make it a preferred choice for applications in electronic components and energy production.

Quantitative analysis
Element Ni Si Fe Sn Ca Bi Mg Cd Al P
Concentration(%) 0.003 0.002 0.005 0.0001 0.002 0.0001 0.002 0.0001 0.002 0.001
Element C O N Sb Pb
Concentration(%) 0.01 0.003 0.003 0.0005 0.0001
Purity(Metallic Base) Mo≥99.95%
Element Ni Mg Fe Sn Al Bi Si Cd P
Concentration(%) 0.0014 <0.0001 0.0047 <0.0001 0.0002 <0.0001 <0.001 <0.001 <0.001
Element C N Sb Pb Cu
Concentration(%) 0.0021 0.003 <0.0001 <0.0001 <0.0005
Purity(Metallic Base) Mo≥99.97


Product Functions



  1. High-Temperature Resistance: Molybdenum strip foil retains its strength and structural integrity even at temperatures as high as 1800°C, making it indispensable in aerospace and energy sectors.
  2. Corrosion Resistance: It exhibits strong resistance to corrosion, particularly in aggressive chemical environments, ensuring a longer operational life.
  3. Electrical Conductivity: With superior conductivity, molybdenum foil is commonly used in semiconductor applications, providing efficiency in energy and electronic systems.
  4. Thermal Stability: Its excellent thermal conductivity and low thermal expansion properties are crucial for maintaining dimensional stability in high-heat applications.
  5. Strength-to-Weight Ratio: Molybdenum foil offers a high strength-to-weight ratio, which is especially valuable in industries like aerospace, where weight-saving materials are critical.
molybdenum strip/foil price 0.025 molybdenum foil 0.025*200mm molybdenum foil price

Product Applications

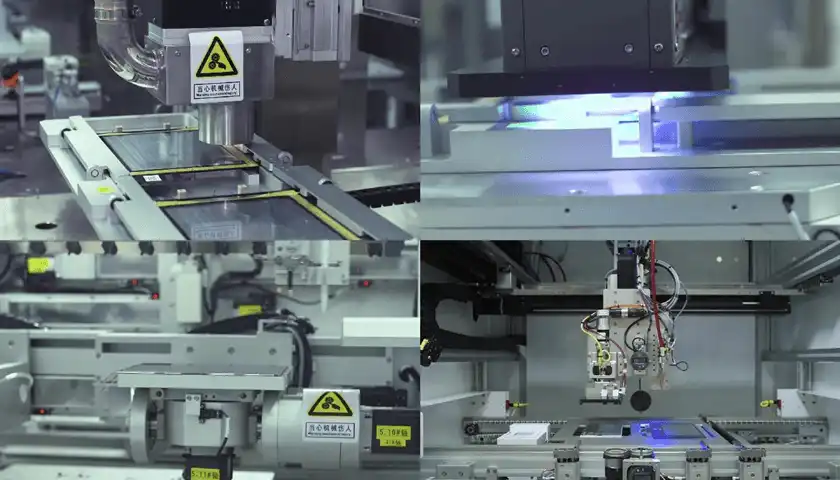

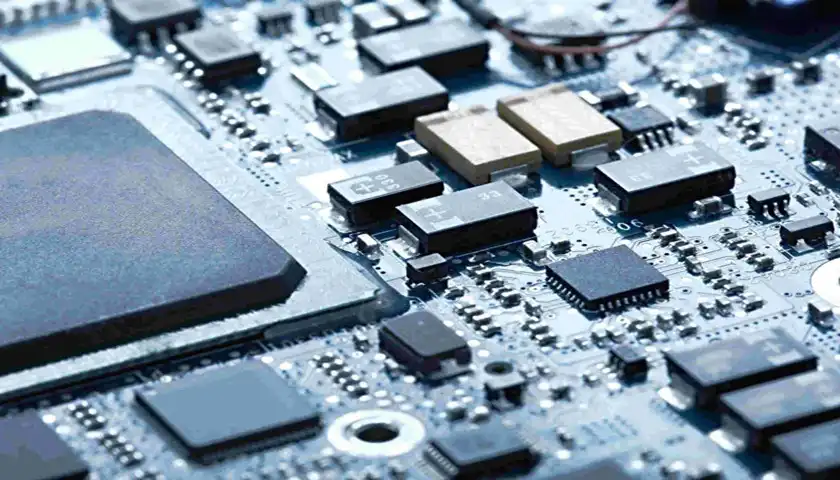

  1. Electronics: Cleaning molybdenum strip foil is widely used in the production of components like semiconductors, displays, and high-performance circuits due to its thermal and electrical properties.
  2. Aerospace Industry: The high temperature and corrosion resistance make it ideal for use in spacecraft and high-altitude aircraft, where materials face extreme conditions.
  3. Energy Sector: Molybdenum strip foil is integral to the production of solar panels, fuel cells, and other energy-related technologies requiring efficient thermal and electrical conductivity.
  4. Research & Development: Scientific institutions rely on molybdenum foil for its stability and precision in experimental settings, especially in high-vacuum environments.
  5. Medical Devices: Its biocompatibility and resistance to wear make molybdenum foil suitable for certain medical implants and devices.
molybdenum foil application molybdenum foil application

Product Process and Production Flow



The production process of cleaning molybdenum strip foil at Shaanxi Peakrise Metal Co., Ltd. involves several critical stages to ensure the highest quality standards:

  1. Raw Material Selection: We source high-purity molybdenum for the initial material stage, ensuring that only the best quality molybdenum is used.
  2. Sintering: Molybdenum powder is sintered at high temperatures to create dense and robust molybdenum blocks.
  3. Rolling: The sintered molybdenum blocks undergo multiple stages of rolling to achieve the desired thickness and uniformity for strip foils.
  4. Cleaning and Polishing: The foil is subjected to rigorous cleaning processes to remove any impurities or surface contaminants, resulting in a polished, clean surface.
  5. Quality Testing: Each batch undergoes stringent testing for mechanical properties, surface finish, and dimensional accuracy to meet industry standards.


Why Choose Us?



  1. Extensive Experience: With over a decade of experience, Shaanxi Peakrise Metal Co., Ltd. is a leading manufacturer of molybdenum and other non-ferrous metals, offering reliable and high-quality products.
  2. Advanced Equipment: We utilize state-of-the-art production machinery, including sintering furnaces, rolling mills, and CNC machines, ensuring precision and quality control at every stage of production.
  3. Comprehensive Services: From material R&D to product testing and after-sales support, we provide a full range of services to meet the needs of our global clientele.
  4. Global Export Reach: Our products are exported to major markets worldwide, including the U.S., Germany, South Korea, and Australia, with consistently positive customer feedback.
  5. Quality Assurance: We are ISO 9001 certified, guaranteeing that every product meets international quality standards.

product-1-1

OEM/ODM Services



At Shaanxi Peakrise Metal Co., Ltd., we provide comprehensive OEM and ODM services, allowing clients to customize the size, shape, and specific properties of molybdenum strip foil to meet their unique project requirements. Whether you need a specific thickness or a particular surface finish, we can deliver tailored solutions based on your specifications.

product-1-1

FAQ



  1. What is the typical lead time for molybdenum strip foil orders?

    • The lead time depends on the order size and customization requirements but generally ranges between 2 to 4 weeks.

  2. Can I request specific thicknesses and widths for my molybdenum foil?

    • Yes, we offer customized sizes based on your technical specifications.

  3. Is molybdenum strip foil suitable for high-vacuum environments?

    • Absolutely. Molybdenum’s low outgassing rate and thermal stability make it ideal for vacuum applications.

  4. What are the packaging options for international shipping?

    • We provide a variety of packaging options, including wooden crates, foam-filled boxes, and waterproof packing, to ensure safe transportation.

  5. Do you offer sample orders for molybdenum strip foil?

    • Yes, we provide sample orders for testing purposes to ensure the product meets your requirements.

product-1-1

Packaging



  • Wooden Crates: Durable and protective packaging for bulk orders, ensuring safe transport over long distances.
  • Carton Packaging: Suitable for smaller quantities or sample orders, providing cost-effective protection.
  • Foam-Filled Boxes: Extra cushioning for delicate or high-precision orders to prevent damage during transit.
  • Waterproof Packaging: Essential for international shipments to protect against moisture and environmental factors.
  • Custom Packaging: Tailored solutions available for unique project requirements.

product-1-1 product-1-1 product-1-1 product-1-1
product-1-1 product-1-1 product-1-1 product-1-1


Logistics

  • Sea Freight: Ideal for large orders requiring economical shipping options.
  • Air Freight: Fast and reliable shipping for time-sensitive orders.
  • Land Transportation: Available for regional deliveries, providing flexible transport solutions.
  • Multimodal Transport: A combination of transport methods to optimize cost and delivery time.
  • Courier Services: For smaller, urgent shipments, we offer international courier services like DHL, FedEx, and UPS.

product-1-1



Contact us


For all your cleaning molybdenum strip foil needs, trust Shaanxi Peakrise Metal Co., Ltd. to provide high-quality, customizable solutions tailored to your project requirements. We welcome global purchasers to collaborate with us and benefit from our expertise. Get in touch today at info@peakrisemetal.com to discuss your specific needs and request a quote. Let us help you achieve excellence with our world-class molybdenum products.

product-1-1
