molybdenum polished plate 20mm
W Content: 50% （wt%）
Mo Content: 50% （wt%）
Shape: Rod,Plate,Crucible,Custom Parts
Advantage: High Strength
Surface: Bright
Work Temperature：>1800℃
PRODUCT DESCRIPTION

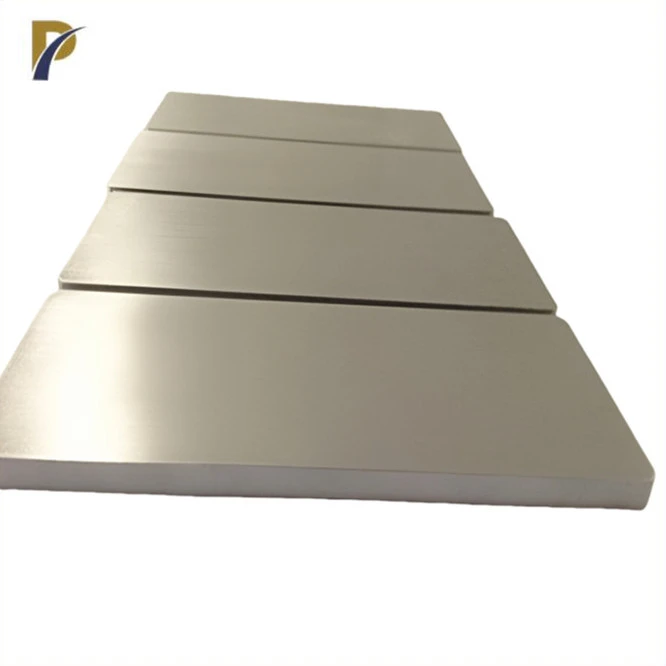

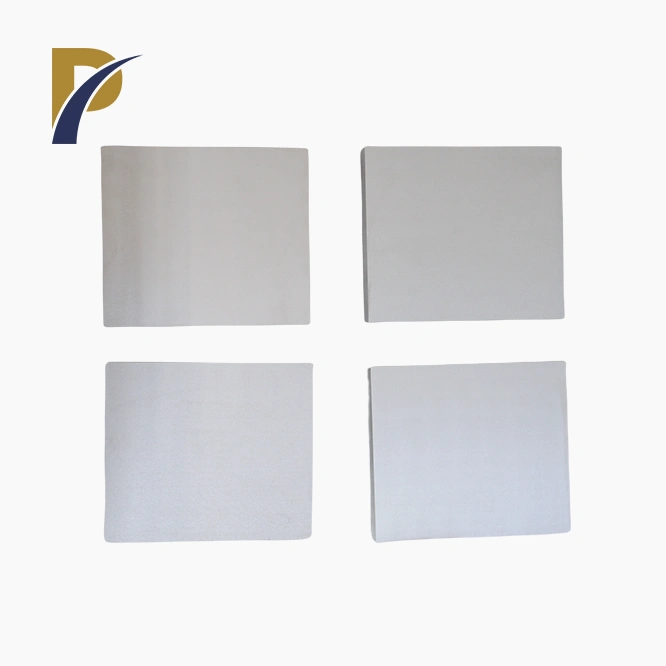

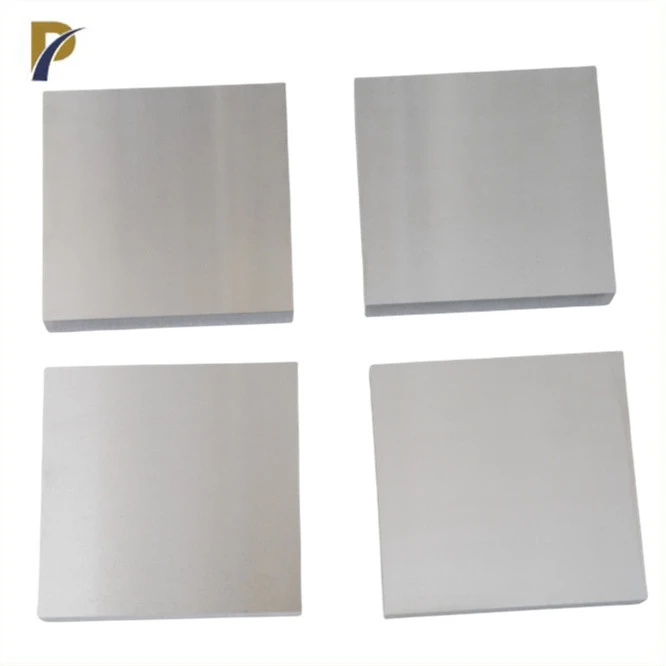

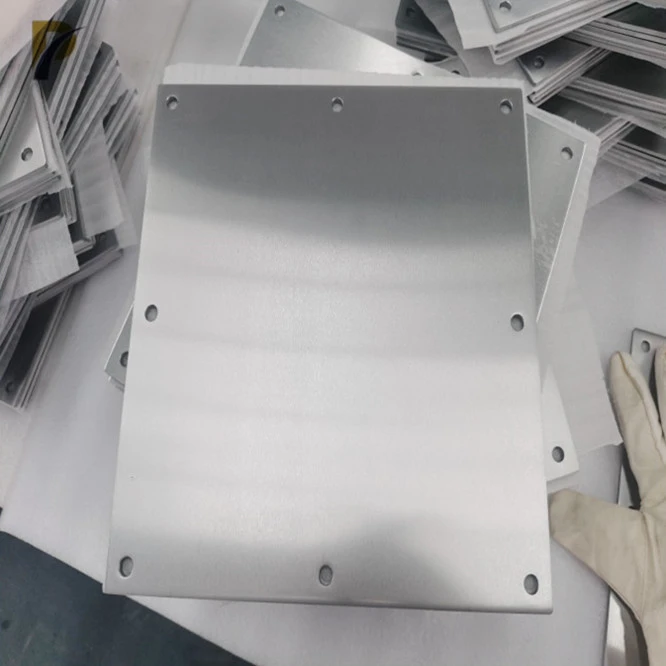

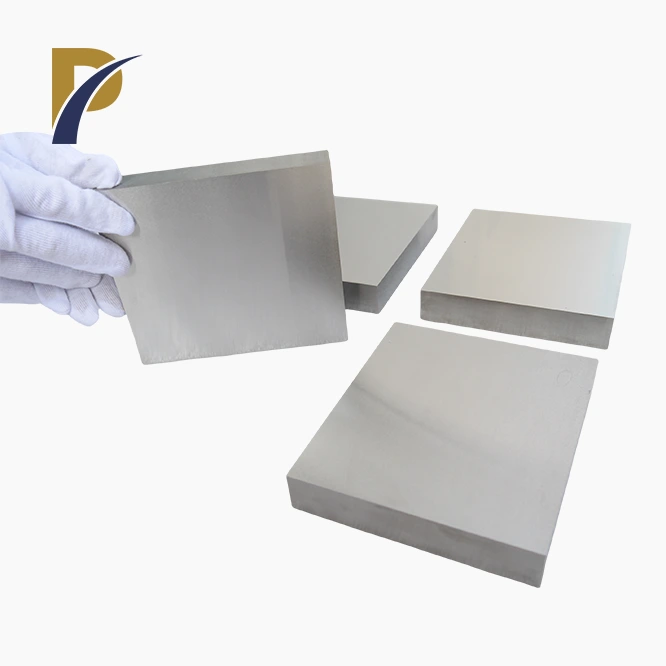

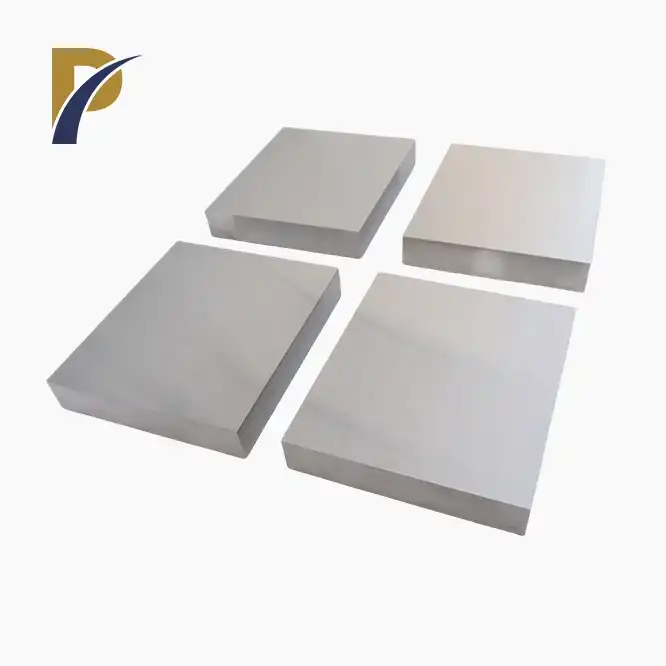

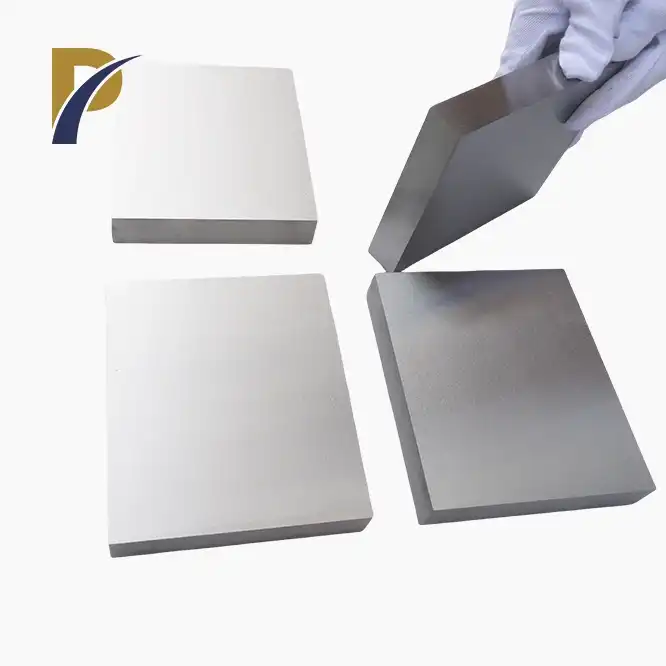

Molybdenum Polished Plate Product Introduction
Molybdenum polished plates are a critical component in the defense and aerospace industries due to their exceptional strength, corrosion resistance, and high melting point. Known for its remarkable ability to withstand extreme temperatures and harsh conditions, molybdenum has become the go-to material for protective armor in high-stakes environments. Shaanxi Peakrise Metal Co., Ltd., as a leading supplier of molybdenum polished plates, provides tailored solutions to meet the stringent demands of global defense contractors and advanced engineering firms. Our plates are known for their uniformity, precision, and compliance with international standards, making them a preferred choice in various applications where durability and reliability are paramount. With years of expertise in non-ferrous and refractory metal production, Peakrise Metal continues to set the benchmark for quality and innovation in the industry.
Since entering the international market in 2010, we have supplied premium molybdenum polished plates and other high-performance materials to clients in countries such as the United States, South Korea, Australia, and Germany. Our dedication to quality and customer satisfaction has allowed us to build long-term relationships with our clients, who value the reliability and superior properties of our products. With a comprehensive approach to material research and development, we ensure that every molybdenum polished plate we manufacture meets or exceeds our customers' expectations.
Product Parameters Table
Molybdenum plate
thickness:0.2mm-20mm wideth:10-700mm length:<2500mm
Purity:99.95%,99.97%
Grade:Mo-1,TZM,Mo-La,361,364
Standard:ASTM B386
Surface:black,polished,Alkaline washing,sandblasting
| Parameter | Value |
|---|---|
| Purity | 99.95% |
| Plate Thickness | 2 mm - 50 mm |
| Width | 100 mm - 500 mm |
| Length | 500 mm - 2000 mm |
| Surface Finish | Polished/Machined |
| Compliance | ASTM B386 |
Physical and Mechanical Properties
Chemical content as per ASTM B386:
| Element | Composition % | ||
| Grade | |||
| 361(Mo-1) | 364(TZM) | 366(Mo-30%W) | |
| C | 0.01 max. | 0.01~0.04 | 0.03 max. |
| O,max. | 0.007 | 0.03 | 0.0025 |
| N,max. | 0.002 | 0.002 | 0.002 |
| Fe, max. | 0.01 | 0.01 | 0.01 |
| Ni, max. | 0.005 | 0.005 | 0.005 |
| Si, max. | 0.01 | 0.005 | 0.01 |
| Ti | 0.4~0.55 | ||
| W | 27~33 | ||
| Zr | 0.06~0.12 | ||
| Mo | Remain | Remain | Remain |
Product Functions
Molybdenum polished plates serve a variety of critical functions in military and aerospace applications, thanks to their unique properties:
- Ballistic Protection: Molybdenum's high hardness and strength provide superior ballistic protection, making it an essential component in armored vehicles, aircraft, and personal protective equipment.
- Thermal Management: With excellent thermal conductivity, molybdenum plates help manage heat in high-temperature environments, ensuring the structural integrity of armor systems.
- Durability in Harsh Conditions: The resistance to corrosion and oxidation means that molybdenum armor plates maintain their protective qualities in challenging environments, such as deserts or at sea.
- Lightweight and Efficient: The combination of lightweight construction and durability allows for easier maneuverability in the field without compromising on safety.
| Material type |
Condition
|
Thickness inches(mm) | Tensile Strength B Min, klb/in2 (MPa) | Yield Strength 0.2% Residual Deformation, Min, klb/in2 (mm) | Elongation, min, % (2 inches or 50 mm) | Minimum bending radius |
| 361 | SR | ≤0.001(0.025) | 115(795) | 95(655) | 1 | |
| 364 | SR | 0.01~0.025(0.25~0.635) | 120(830) | 100(690) | 6 | 2t |
| ≥0.025~0.06(0.635~1.5) | 120(830) | 100(690) | 7 | 2t | ||
| ≥0.06~0.09(1.5~2.3) | 100(690) | 100(690) | 9 | |||
| ≥0.09~0.189(2.3~4.75) | 120(830) | 100(690) | 10 | |||
| 3/16~1/2(4.75~12.7) | 120(830) | 100(690) | 10 | |||
| ≥1/2~1(12.7~25.4) | 110(760) | 95(655) | 10 | |||
| ≥1~1-1/2(25.4~38) | 100(690) | 85(585) | 8 | |||
| 364 | RX | ≥3/16~1-1/2(4.75~38) | 75(515) | 45(310) | 10 | |
|
A SR=stress relief； RX=almost completely recrystallized , B Longitudinal and transverse testing between 65°F and 85°F (18°C and 29°C) C t=Material thickness D is limited by transverse rolling, transverse elongation is easy to edge. |
||||||
Product Applications
Given the versatile properties of molybdenum polished plates, they are employed in several key industries:
- Defense: Used in armored vehicles, tanks, and protective barriers due to its high strength and ballistic resistance.
- Aerospace: Molybdenum plates are vital in shielding aircraft from high temperatures and abrasive environments during flight.
- Industrial Furnaces: These plates are used as heat shields and structural components in high-temperature furnaces, ensuring operational efficiency.
- Nuclear Applications: With its low thermal expansion and resistance to radiation damage, molybdenum is widely used in nuclear reactors and radiation shielding systems.
 |
 |
 |
Product Process and Production Flow
Our production process for molybdenum polished plates is designed to ensure precision and quality at every step:
- Raw Material Sourcing: We source high-purity molybdenum from trusted suppliers to ensure the highest quality standards.
- Sintering and Melting: Using intermediate frequency sintering furnaces and vacuum arc melting technology, we refine the material to achieve the desired density and purity.
- Rolling and Forming: The plates are rolled to achieve the required thickness and dimensions, followed by precision machining for customized specifications.
- Quality Control: Every batch undergoes rigorous testing for physical and chemical properties to ensure it meets international standards such as ASTM B386.
- Finishing: Plates are polished or machined to the required surface finish before final inspection and packaging.

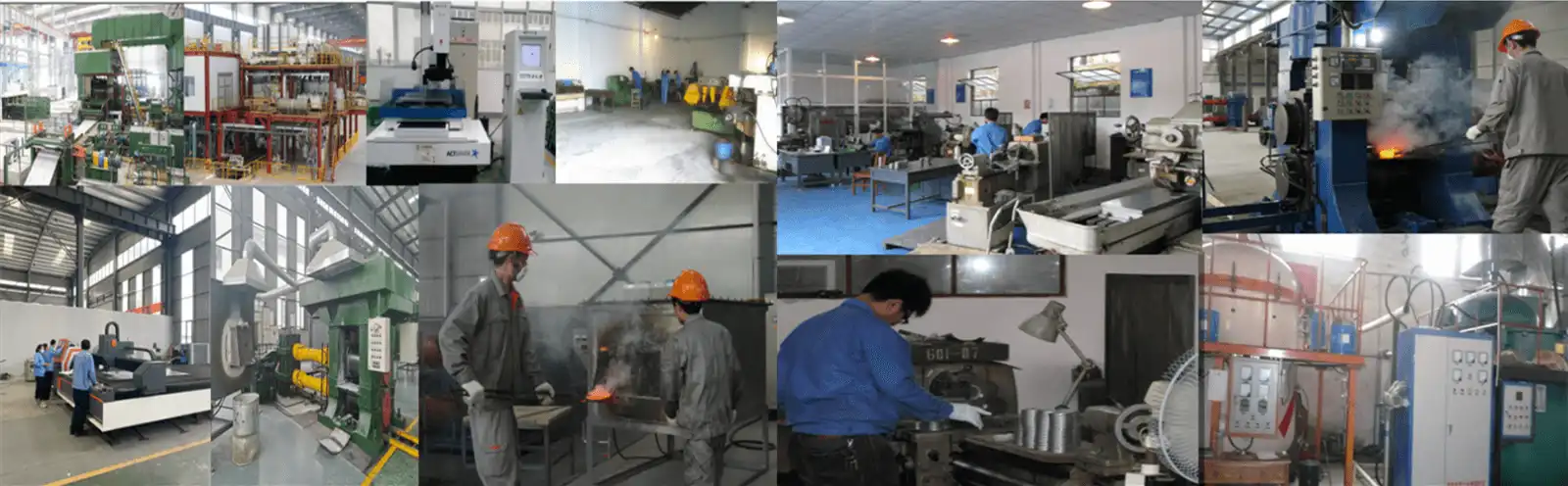

Our Factory
At Shaanxi Peakrise Metal Co., Ltd., we pride ourselves on our state-of-the-art manufacturing facility. Spanning over 10,000 square meters, our factory is equipped with advanced production and testing equipment, including vacuum annealing furnaces, CNC machines, and plasma welding stations. With a dedicated R&D department, we continually innovate to enhance product performance and introduce new materials to the market.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Logistics and Packaging
We ensure that our molybdenum polished plates are delivered safely and on time, using a variety of packaging and shipping methods:
- Wooden Crate Packaging: For larger quantities and heavy-duty shipments.
- Carton Packaging: Suitable for smaller orders or individual plates.
- Foam-Filled Packaging: Provides additional protection against impact during transportation.
- Waterproof and Moisture-Proof Packaging: Ensures protection against environmental factors during storage and shipping.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Logistics options include:
- Sea Freight: Ideal for large, bulk orders.
- Air Freight: Ensures faster delivery for urgent shipments.
- Land Freight: Available for domestic or cross-border shipments.
- Multimodal Transport: A combination of sea, air, and land shipping for cost-effective solutions.
- Courier Services: For smaller, expedited orders.
Why Choose Us?
Here are the key reasons why Shaanxi Peakrise Metal Co., Ltd. should be your first choice for molybdenum armor plates:
- Comprehensive Expertise: Decades of experience in producing and processing refractory metals.
- Advanced Equipment: State-of-the-art manufacturing and testing facilities.
- Global Reach: Serving clients across the globe with a focus on quality and reliability.
- High Stock Availability: A wide range of materials and products always in stock for quick delivery.
- Customization: Tailored solutions to meet the specific needs of different industries.
OEM Services
At Shaanxi Peakrise Metal Co., Ltd., we offer comprehensive OEM/ODM services. Whether you need custom dimensions, specific alloy compositions, or unique surface finishes, we are equipped to deliver products that meet your exact specifications. Our experienced engineering team is ready to collaborate with you to ensure the best results for your project.
Products Produced By Shaanxi Peakrise Metal Co.,Ltd
 |
 |
 |
 |
 |
 |
 |
|
 |
FAQ
- What is the typical lead time for molybdenum polished plates?
- Lead time varies depending on order size, but we aim to ship within 2-4 weeks.
- Do you offer custom sizes for molybdenum plates?
- Yes, we provide custom dimensions to meet your specific requirements.
- Are your molybdenum plates compliant with international standards?
- Yes, all our plates comply with ASTM B386 standards.
- What is your minimum order quantity?
- The minimum order quantity varies based on specifications; please contact us for more details.
- How do you ensure product quality?
- Every batch undergoes strict quality control procedures, including chemical composition analysis and mechanical testing.
