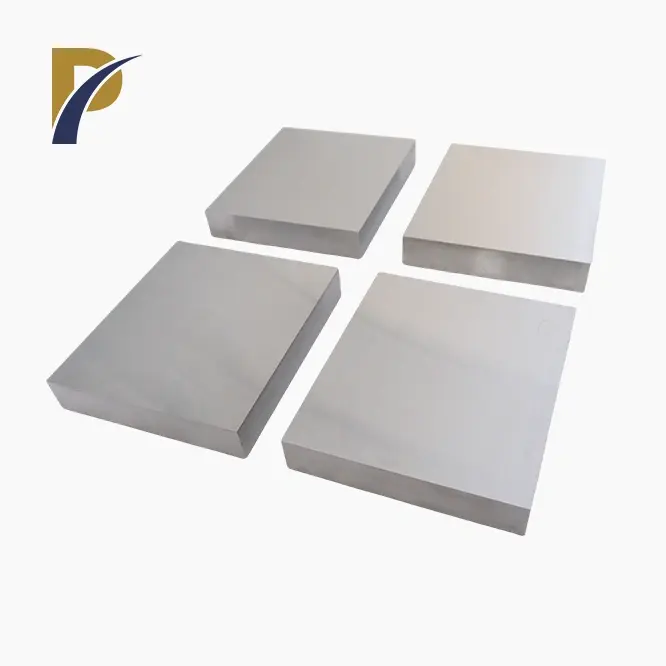

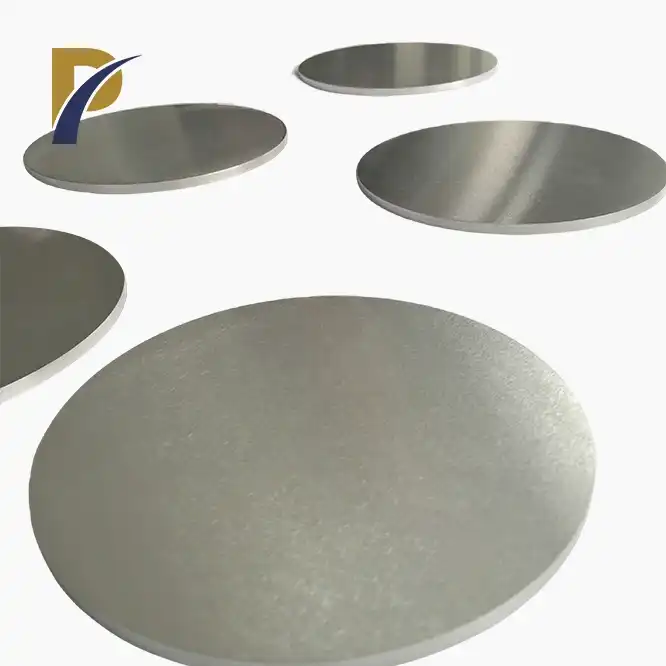

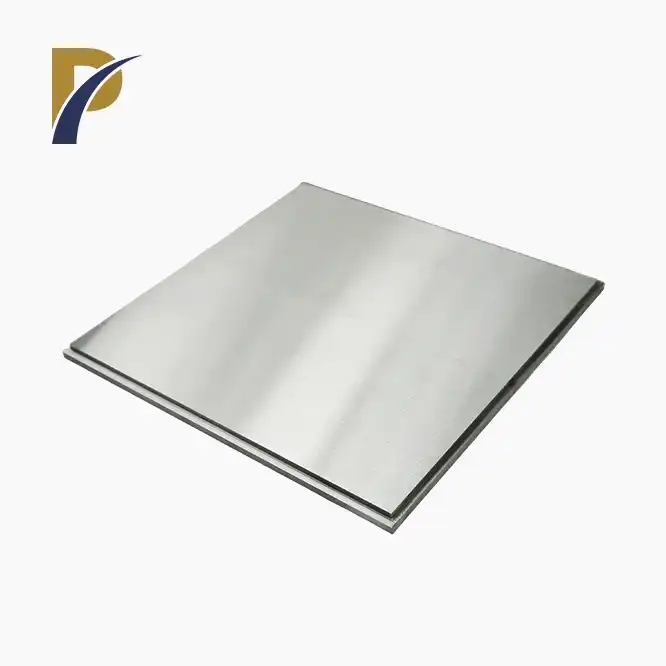

molybdenum lanthanum plate
W Content: 50% （wt%）
Mo Content: 50% （wt%）

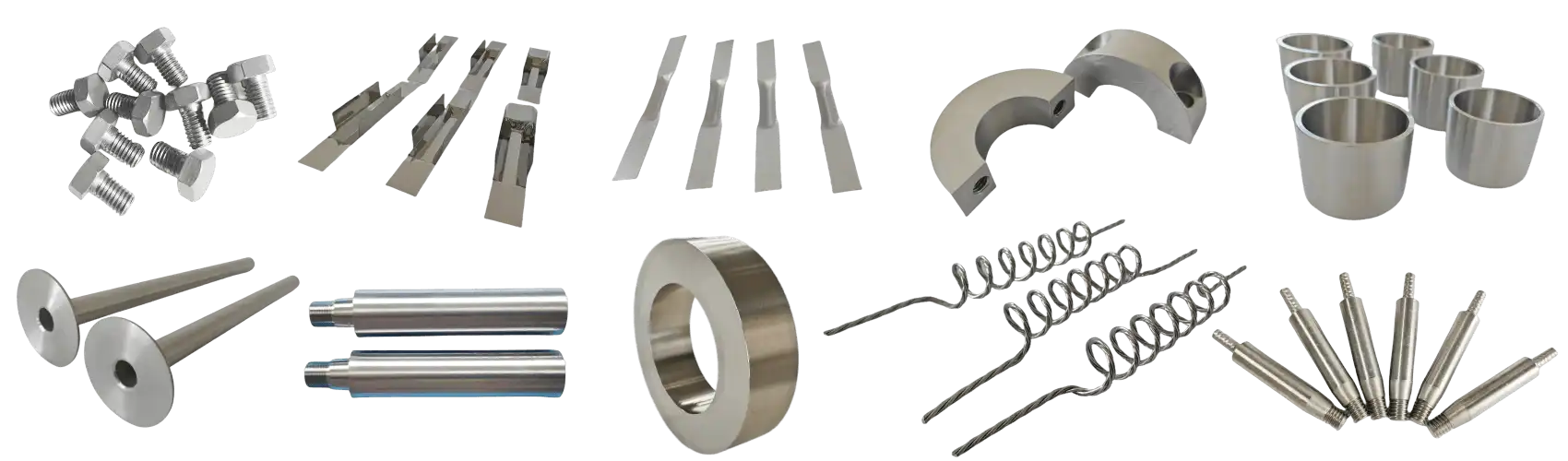

Shape: Rod,Plate,Crucible,Custom Parts
Advantage: High Strength
Surface: Bright
Work Temperature：>1800℃
PRODUCT DESCRIPTION
Product Introduction: Molybdenum Lanthanum Plate by Shaanxi Peakrise Metal Co., Ltd.
Molybdenum lanthanum (MoLa) plate is a key material in various high-temperature applications due to its excellent mechanical properties, stability, and enhanced creep resistance. As an alloy composed of molybdenum and lanthanum oxide, it offers superior performance in extreme environments, such as high-temperature furnaces, aerospace components, and advanced energy systems. Shaanxi Peakrise Metal Co., Ltd., a leading supplier of non-ferrous metals, provides top-grade molybdenum lanthanum plates for industries requiring durability, precision, and reliability.
Our molybdenum lanthanum plate is fabricated using advanced production techniques, ensuring the material retains its mechanical properties even at high temperatures. As a trusted supplier, Shaanxi Peakrise Metal Co., Ltd. has been delivering high-quality non-ferrous metal products worldwide. With years of experience and a global reach, we provide customized solutions that meet international standards, making us the partner of choice for molybdenum lanthanum plates in various industrial applications.
Product Parameters Table
| Parameter | Value |
|---|---|
| Material Composition | Molybdenum (99.95%) + La2O3 (0.3%-0.7%) |
| Density | 10.2 g/cm³ |
| Tensile Strength | ≥ 500 MPa |
| Thermal Expansion | 5.4 x 10^-6 K^-1 (20°C-1000°C) |
| Melting Point | 2610°C |
| Hardness | ≥ 150 HV |
| Maximum Operating Temp | 1900°C |
| Thickness Range | 0.05 mm to 30 mm |
| Standard Size | Customizable (up to 500 mm x 1000 mm) |
Physical and Chemical Properties
- High-Temperature Stability: MoLa plates maintain their mechanical properties at temperatures above 1500°C, which is essential for high-performance applications.
- Enhanced Creep Resistance: The addition of lanthanum oxide improves the plate's resistance to creep deformation under high stress and heat.
- Oxidation Resistance: Molybdenum lanthanum has a better oxidation resistance compared to pure molybdenum, making it more suitable for use in harsh environments.
- Low Thermal Expansion: The material exhibits minimal thermal expansion, reducing the risk of deformation under temperature fluctuations.
| Grade | Mo | Impurity content, not more than | |||||||||
| Al | Ca | Fe | Mg | Ni | Si | C | N | O | La2O3 | ||
| Mo1 | Remain | 0.002 | 0.002 | 0.010 | 0.002 | 0.005 | 0.01 | 0.01 | 0.003 | 0.008 | - |
| Mo2 | Remain | 0.005 | 0.004 | 0.015 | 0.005 | 0.005 | 0.01 | 0.02 | 0.003 | 0.020 | - |
| MoLa | Remain | 0.002 | 0.002 | 0.015 | 0.005 | 0.005 | 0.01 | 0.02 | 0.005 | - | 0.1~1.8 |
| Note: The O content of MoLa grades can be tested according to customer needs | |||||||||||
Product Functions
- Durability at High Temperatures: The MoLa plate is capable of withstanding extreme heat, making it ideal for use in high-temperature furnaces and reactors.
- Structural Integrity: The addition of lanthanum enhances the material's structural integrity, ensuring it does not warp or degrade even under intense conditions.
- Energy Efficiency: Due to its thermal conductivity and low expansion rate, MoLa plates can improve the efficiency of high-temperature systems by reducing energy loss.
- Resistance to Corrosion: The plate is highly resistant to chemical corrosion, allowing it to be used in aggressive chemical environments without significant degradation.
 |
 |
 |
 |
Product Applications
- Aerospace Industry: MoLa plates are used in aerospace components that must perform under extreme heat and stress, such as jet engines and rocket nozzles.

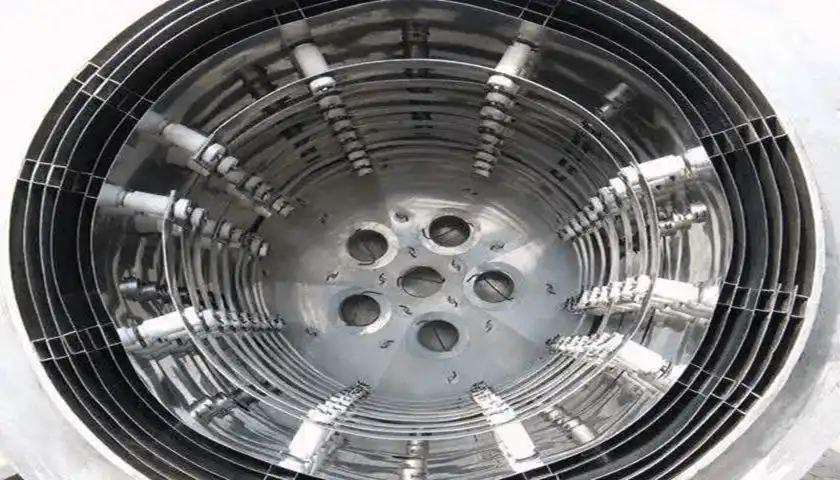

- High-Temperature Furnaces: Their superior heat resistance makes them ideal for lining high-temperature industrial furnaces.
- Nuclear Industry: The material is used in nuclear power plants and research reactors due to its ability to withstand radiation and high temperatures.
- Energy Systems: MoLa plates are utilized in advanced energy systems, including fuel cells and solar panels, where thermal and mechanical stability is required.
 |
 |
Product Process and Production Flow
The production of molybdenum lanthanum plates at Shaanxi Peakrise Metal Co., Ltd. begins with high-purity molybdenum powder and lanthanum oxide, which are carefully mixed and compacted. The material undergoes sintering at high temperatures, followed by rolling and annealing to achieve the desired thickness and mechanical properties. We utilize state-of-the-art vacuum annealing furnaces and rolling mills to ensure uniformity and precision throughout the manufacturing process.
 |
 |
 |
 |
Our Factory
Shaanxi Peakrise Metal Co., Ltd. operates a world-class facility equipped with cutting-edge machinery, including vacuum arc melting furnaces, electron beam welding machines, CNC milling machines, and plasma cutters. Our factory covers 10,000 square meters, allowing us to handle large production volumes and custom orders with ease. Our commitment to quality is backed by ISO 9001 certification, ensuring our products meet the highest international standards.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Our Quality Inspection
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Logistics and Packaging
-
Packaging Options:
- Wooden crate packaging for large orders.
- Foam-filled boxes for secure transportation.
- Waterproof and moisture-proof packaging for protection against environmental factors.
- Custom packaging solutions available upon request.
- All packaging conforms to international shipping standards.
-
Logistics:
- Sea Freight: Ideal for large-volume orders requiring economical shipping.
- Air Freight: For urgent orders requiring quick delivery.
- Land Transport: Available for domestic orders.
- Multimodal Transport: Combining sea, air, and land transportation for optimized delivery.
- Courier Services: Available for smaller, time-sensitive orders.
Why Choose Us?
- Rich Experience: With over 10 years of experience, Shaanxi Peakrise Metal Co., Ltd. is a leading producer of molybdenum lanthanum and other non-ferrous metal products.
- Advanced Equipment: We employ state-of-the-art machinery to ensure precision and quality in every product we deliver.
- Global Reach: Our products are exported to over 30 countries, establishing long-term partnerships with satisfied clients worldwide.
- Customization: We offer OEM/ODM services tailored to the specific needs of our clients.
- Quality Assurance: Our ISO 9001-certified quality control system ensures that every product meets stringent quality standards.
OEM Services
Shaanxi Peakrise Metal Co., Ltd. provides comprehensive OEM/ODM services. Whether you need customized dimensions, specific material compositions, or specialized production processes, we work closely with clients to deliver products that meet their exact requirements.
FAQ
- What is the lead time for molybdenum lanthanum plates?
- The standard lead time is 4-6 weeks, depending on the order size and customization requirements.
- Can I request a sample before placing a bulk order?
- Yes, we offer samples for evaluation before confirming bulk orders.
- What is the minimum order quantity (MOQ)?
- Our MOQ varies based on product specifications, but we are flexible with small orders for custom projects.
- Do you provide certification for your products?
- Yes, all products are accompanied by material certificates, including chemical composition and mechanical property reports.
- What payment terms do you accept?
- We accept various payment methods, including T/T, L/C, and PayPal.
Contact Us
Ready to partner with a reliable supplier for your molybdenum lanthanum plate needs? Shaanxi Peakrise Metal Co., Ltd. is here to help. For inquiries, please contact us at info@peakrisemetal.com. We look forward to working with global buyers and providing top-quality products and services tailored to your needs.
