Material Composition and Purity
Chemical Composition Requirements

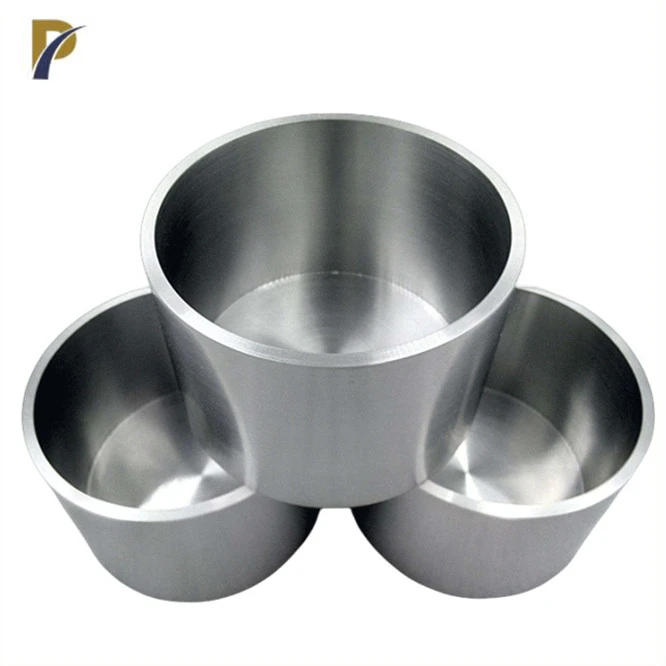

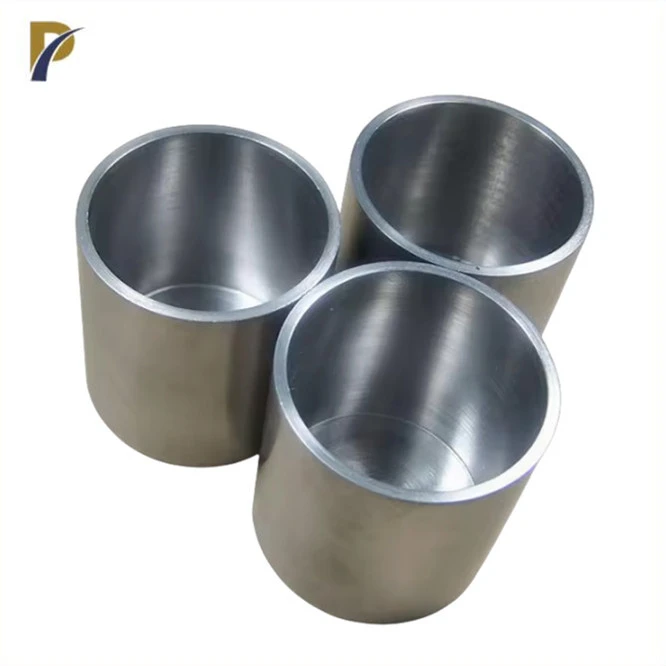

The chemical composition of molybdenum crucible liners is a critical factor in determining their overall quality and performance. High-purity molybdenum, typically 99.95% or higher, is essential for these liners. Impurities such as carbon, oxygen, and nitrogen must be kept to a minimum to prevent contamination of the molten materials and ensure optimal thermal properties. Trace elements like iron, nickel, and silicon are also carefully controlled to maintain the liner's structural integrity at elevated temperatures.
Microstructure and Grain Size
The microstructure of molybdenum crucible liners plays a critical part in their mechanical and warm properties.A fine-grained structure is by and large favored, as it improves the material's quality and resistance to misshapening at tall temperatures.Manufacturers employ specialized processing techniques, such as powder metallurgy and controlled recrystallization, to achieve the desired grain size and orientation. This meticulous attention to microstructure ensures that the liner can withstand the thermal stresses and chemical interactions encountered during use.
Density and Porosity Control
The density of molybdenum crucible liners is a crucial quality parameter, as it directly impacts their thermal conductivity and resistance to chemical attack. High-quality liners typically have a density close to the theoretical maximum for molybdenum, which is approximately 10.28 g/cm³. Porosity must be minimized to prevent the infiltration of molten materials and gases, which could compromise the liner's performance and lifespan. Advanced manufacturing techniques, such as hot isostatic pressing (HIP), are often employed to achieve near-perfect density and virtually eliminate porosity in the final product.
 |
 |
Dimensional Accuracy and Surface Finish
Precision Machining Tolerances

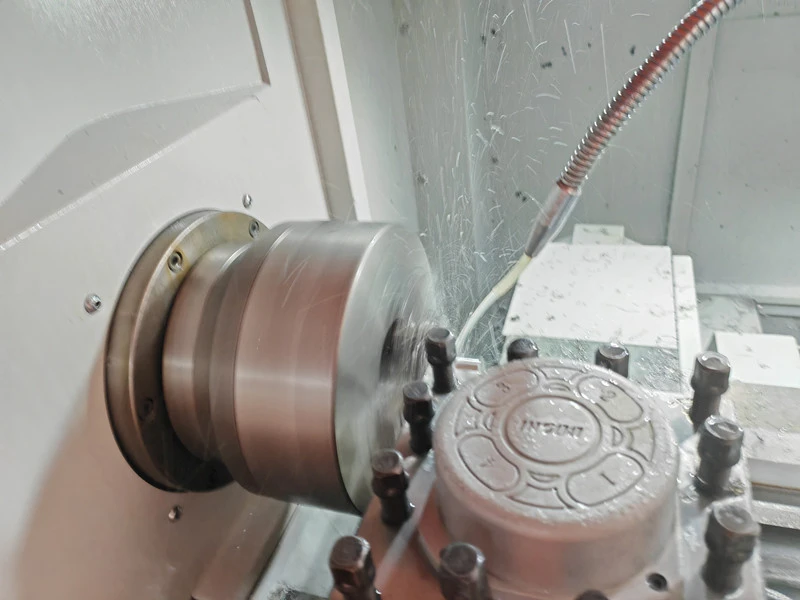

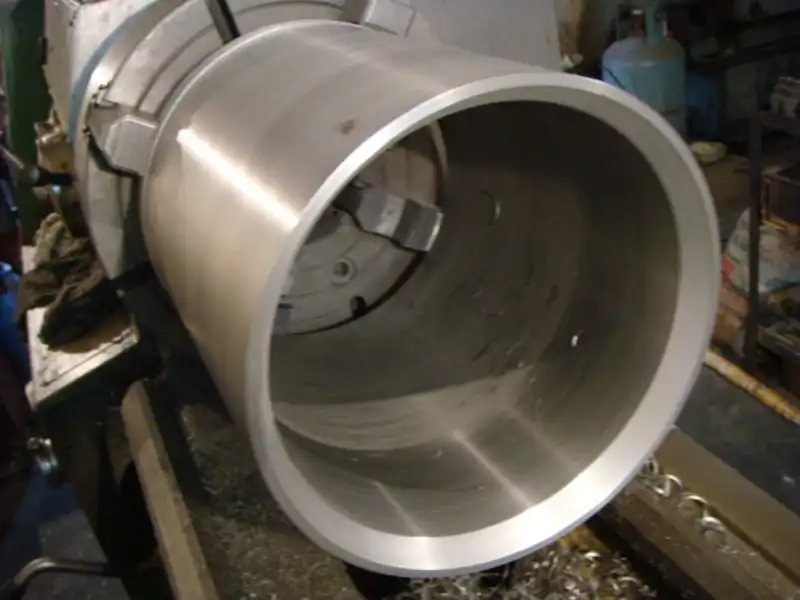

Achieving tight dimensional tolerances is paramount in the production of high-quality molybdenum crucible liners. These components must fit precisely within the crucible to ensure optimal heat transfer and prevent any gaps that could lead to material infiltration or uneven heating. Typical tolerances for critical dimensions may be as tight as ±0.05 mm or less, depending on the specific application requirements. Advanced CNC machining centers and specialized cutting tools are utilized to achieve these exacting standards, often incorporating in-process measurement systems for real-time quality control.
Surface Roughness Requirements
The surface finish of molybdenum crucible liners is a critical quality attribute that affects both their performance and longevity. A smooth surface helps prevent material adhesion and facilitates easy cleaning between production cycles. Industry standards typically call for surface roughness values (Ra) of 0.8 μm or less, with some high-precision applications requiring even finer finishes. Achieving these smooth surfaces often involves multi-stage polishing processes, including mechanical, chemical, and electropolishing techniques. The final surface finish is meticulously inspected using advanced profilometry equipment to ensure compliance with specified requirements.
Geometrical Tolerances and Form Control
Beyond basic dimensional accuracy, molybdenum crucible liners must also meet stringent geometrical tolerances to ensure proper function. This includes controlling attributes such as cylindricity, flatness, and concentricity. For example, the cylindricity tolerance for a liner may be specified as 0.02 mm or less to ensure uniform wall thickness and heat distribution. Form control is particularly crucial for complex liner geometries, such as those with internal features or tapered sections. Manufacturers employ sophisticated coordinate measuring machines (CMMs) and optical scanning technologies to verify compliance with these exacting geometrical standards.
Thermal and Mechanical Properties
High-Temperature Stability
The ability of molybdenum crucible liners to maintain their structural integrity and dimensional stability at extreme temperatures is a fundamental quality requirement. High-quality liners exhibit minimal thermal expansion and creep under prolonged exposure to temperatures exceeding 2000°C. This thermal stability is achieved through careful control of the material's composition, microstructure, and processing history. Manufacturers often conduct rigorous thermal cycling tests to validate the liner's performance under simulated operating conditions, ensuring that it can withstand the demanding thermal environments encountered in semiconductor and crystal growth applications.
 |
 |
Mechanical Strength and Toughness
While molybdenum crucible liners are primarily designed for their thermal properties, they must also possess adequate mechanical strength and toughness to withstand handling, thermal shock, and potential impacts during use. Quality standards typically specify minimum tensile strength, yield strength, and elongation values that the material must meet at both room temperature and elevated temperatures. For instance, high-quality molybdenum liners may be required to maintain a tensile strength of at least 500 MPa at 1000°C. Fracture toughness is another critical parameter, as it determines the liner's resistance to crack propagation under stress. Manufacturers employ various testing methodologies, including tensile tests, impact tests, and fracture mechanics analyses, to verify compliance with these mechanical property requirements.
Thermal Conductivity and Emissivity
The thermal properties of molybdenum crucible liners are crucial for their performance in high-temperature applications. High thermal conductivity ensures efficient heat transfer from the heating elements to the molten material, while controlled emissivity helps maintain precise temperature control. Quality standards often specify minimum thermal conductivity values, typically around 138 W/(m·K) at room temperature, with the expectation that this value remains relatively stable at elevated temperatures. Emissivity requirements may vary depending on the specific application, but are generally in the range of 0.05 to 0.2 for polished molybdenum surfaces. These thermal properties are carefully measured using techniques such as laser flash analysis and infrared thermography to ensure that the liners meet the exacting standards required for advanced thermal processing applications.
Conclusion
Understanding and following to the quality guidelines for molybdenum crucible liners is basic for guaranteeing ideal execution in high-temperature mechanical forms. From material purity and composition to dimensional accuracy and thermal properties, each aspect plays a crucial role in the liner's overall quality. By maintaining rigorous quality control measures and employing advanced manufacturing techniques, producers can deliver molybdenum crucible liners that meet the exacting demands of modern industries, ultimately contributing to improved efficiency, reliability, and product quality in critical applications.
