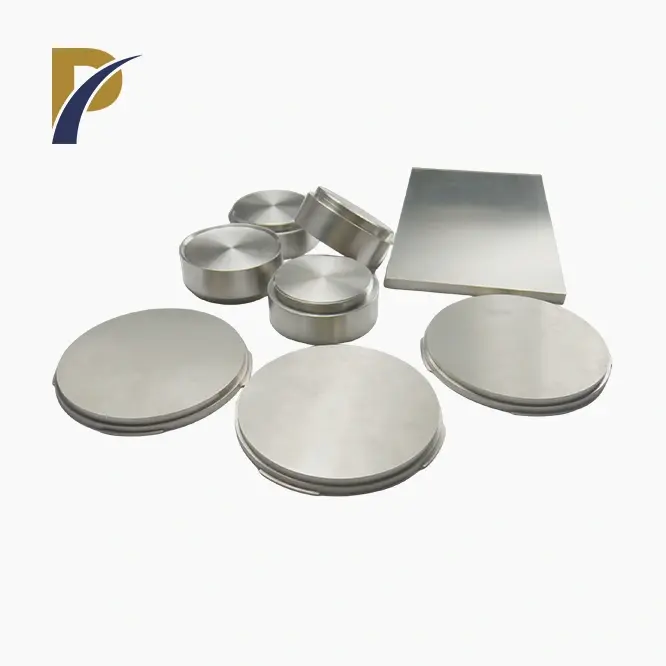

Mechanical Testing Procedures for TZM Alloy
Tensile Strength Evaluation
Evaluating the tensile strength of molybdenum TZM alloy is paramount in understanding its load-bearing capabilities. This test involves subjecting a carefully prepared specimen to uniaxial tension until failure occurs. The process yields crucial data on yield strength, ultimate tensile strength, and elongation. Sophisticated testing machines, equipped with extensometers, measure the strain as the load increases, providing a comprehensive stress-strain curve. This curve offers insights into the alloy's elastic and plastic deformation behaviors, essential for predicting its performance under various loading conditions.
Hardness Testing Techniques
Hardness testing of molybdenum TZM alloy provides valuable information about its resistance to localized plastic deformation. Common methods include Vickers, Rockwell, and Brinell hardness tests. The Vickers test, particularly suitable for TZM due to its high hardness, uses a diamond indenter to create a small impression on the alloy surface. The size of this impression, measured microscopically, determines the hardness value. This non-destructive testing technique allows for quick assessment of the alloy's surface properties, which can be correlated with other mechanical characteristics such as wear resistance and machinability.
Creep Resistance Assessment
Creep resistance is a critical property of TZM alloy, especially for high-temperature applications. Creep tests involve subjecting the alloy to a constant load at elevated temperatures for extended periods. Sophisticated creep testing machines monitor the gradual deformation of the specimen over time. The resulting creep curve provides insights into the alloy's primary, secondary, and tertiary creep stages. Analysis of this data helps in predicting the long-term behavior of TZM components under sustained stress at high temperatures, crucial for applications in aerospace engines or nuclear reactors where material stability is paramount.
Thermal and Physical Property Analysis
Thermal Conductivity Measurement
Measuring the thermal conductivity of molybdenum TZM alloy is essential for applications involving heat transfer. The laser flash method is frequently employed for this purpose. In this technique, a short laser pulse heats one side of a thin TZM specimen, while the temperature rise on the opposite side is measured using an infrared detector. The thermal diffusivity is calculated from the temperature-time profile, which, combined with the alloy's specific heat capacity and density, yields the thermal conductivity. This property is crucial for designing components in high-temperature environments where efficient heat dissipation is necessary.
| Material | Density /g·cm-3 | Melting point/℃ | Boiling point/℃ |
| TZM alloy(Ti0.5/Zr0.1) | 10.22 | 2617 | 4612 |
| Mo | 10.29 | 2610 | 5560 |
| Mechanical properties |
Elongation /% |
Elastic Modulus /GPa |
Yield Strength /MPa |
Tensile strength /MPa |
Fracture toughness/(MP·m1/2) |
| Data | ≤20 | 320 | 560-1150 | 685 | 5.8-29.6 |
Coefficient of Thermal Expansion (CTE) Determination
The coefficient of thermal expansion (CTE) of TZM alloy is a critical parameter for applications involving temperature fluctuations. Dilatometry is the primary method for CTE determination, where the dimensional changes of a TZM sample are precisely measured as it undergoes controlled heating and cooling cycles. The resulting data provides information on the alloy's linear and volumetric expansion characteristics. Understanding the CTE is vital for designing components that maintain dimensional stability across a wide temperature range, particularly in applications where thermal stresses can lead to material failure or performance degradation.
Specific Heat Capacity Analysis
Determining the specific heat capacity of TZM alloy is crucial for thermal management applications. Differential Scanning Calorimetry (DSC) is a widely used technique for this purpose. In DSC, a TZM sample and a reference material are subjected to a controlled temperature program. The difference in heat flow required to maintain both at the same temperature is measured, allowing for the calculation of specific heat capacity. This property is essential for thermal modeling and design of components where heat absorption and release are critical factors, such as in heat exchangers or thermal protection systems.
 |
 |
Microstructure and Compositional Analysis
Electron Microscopy Techniques
Advanced electron microscopy techniques play a pivotal role in analyzing the microstructure of molybdenum TZM alloy. Scanning Electron Microscopy (SEM) provides high-resolution images of the alloy's surface topography, revealing grain boundaries, precipitates, and defects. Transmission Electron Microscopy (TEM) offers even greater magnification, allowing for the examination of crystal structures and dislocations at the atomic level. These techniques are invaluable for understanding the alloy's microstructural features, which directly influence its mechanical and physical properties. Electron microscopy also aids in quality control, ensuring the desired microstructure is achieved during manufacturing processes.
X-ray Diffraction Analysis
X-ray Diffraction (XRD) is a powerful tool for investigating the crystallographic structure of TZM alloy. This non-destructive technique provides information about the phases present, crystal orientation, and lattice parameters. By analyzing the diffraction patterns produced when X-rays interact with the atomic planes in the alloy, researchers can identify any phase transformations or residual stresses in the material. XRD is particularly useful for monitoring the stability of the alloy's structure after exposure to high temperatures or mechanical stress, ensuring that the desired properties are maintained throughout the component's lifecycle.
Chemical Composition Verification
Accurate determination of the chemical composition of TZM alloy is crucial for quality assurance and performance prediction. X-ray Fluorescence (XRF) spectroscopy is a commonly used technique for this purpose, providing rapid, non-destructive elemental analysis. For more precise quantification, especially of trace elements, Inductively Coupled Plasma Mass Spectrometry (ICP-MS) is employed. These methods ensure that the alloy's composition adheres to specified standards, as even small variations in titanium or zirconium content can significantly affect the material's properties. Regular compositional analysis helps maintain consistency in production and aids in troubleshooting any performance issues related to material composition.
Conclusion
Testing molybdenum TZM alloy involves a comprehensive suite of mechanical, thermal, and microstructural analyses. These rigorous testing procedures ensure the alloy meets the exacting standards required for its demanding applications. From tensile strength evaluation to microstructure characterization, each test provides crucial data that contributes to our understanding of TZM's behavior under various conditions. As technology advances, new testing methods continue to emerge, offering even greater insights into this remarkable alloy. By adhering to established standards and embracing innovative techniques, manufacturers and researchers can confidently push the boundaries of TZM alloy applications, driving progress in industries that rely on its exceptional properties.
