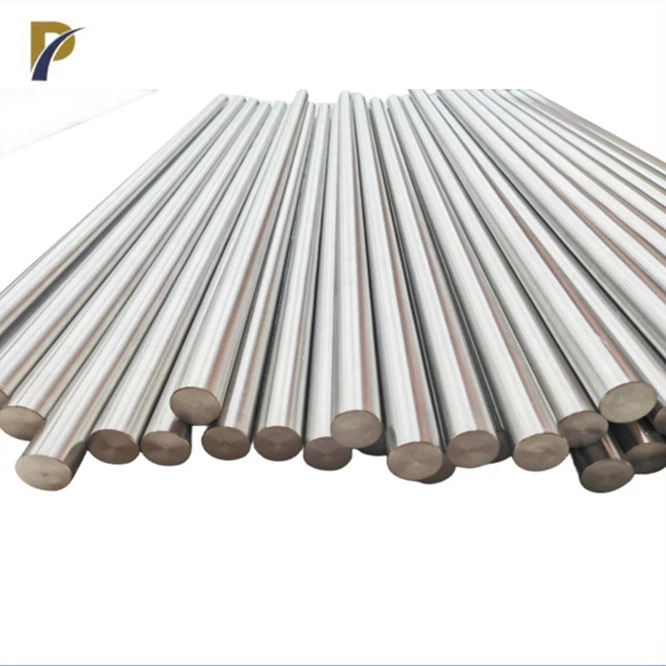

What is the Strength of TZM Molybdenum Alloy Rod at High Temperatures?

The TZM molybdenum alloy rod is known for its exceptional strength at elevated temperatures, making it a popular choice for applications requiring high thermal resistance. Typically, TZM (Titanium-Zirconium-Molybdenum) alloy rods maintain their structural integrity even at temperatures up to 1400°C. This strength is attributed to the alloy’s unique composition, which enhances its resistance to deformation under extreme heat. With a tensile strength ranging from 650 MPa at room temperature to around 400 MPa at 1400°C, TZM molybdenum alloy rods are essential in industries such as aerospace, nuclear, and high-temperature furnace manufacturing. Understanding this capability is crucial for industries requiring reliable performance in high-heat environments.



Why Is TZM Molybdenum Alloy Rod Ideal for High-Temperature Applications?



Composition and Properties of TZM Alloy



TZM alloy is a blend of molybdenum with small amounts of titanium and zirconium. This specific combination increases the alloy’s strength, hardness, and resistance to recrystallization at high temperatures. Molybdenum serves as the base for the alloy, offering excellent thermal conductivity and low thermal expansion. The addition of titanium and zirconium works to improve the alloy’s overall grain structure, making it more resistant to creep and stress at high temperatures.

Moreover, TZM alloy rods have a significant advantage over pure molybdenum rods in high-temperature applications. While pure molybdenum can withstand high heat, its strength begins to degrade at extreme temperatures. The inclusion of titanium and zirconium in TZM alloy ensures that the rod maintains its high-temperature strength and does not suffer from embrittlement, a common issue with pure molybdenum.



High-Temperature Strength and Performance



One of the key reasons industries prefer TZM alloy molybdenum rods is their remarkable tensile and yield strength at elevated temperatures. For instance, the tensile strength of TZM alloy at room temperature is approximately 650 MPa (megapascals), but even at 1400°C, it maintains a tensile strength of around 400 MPa. This makes the material highly reliable in environments with fluctuating or sustained high temperatures.

This strength is not just limited to tensile stress. TZM alloy rods also exhibit excellent compression strength and resistance to creep, which is the slow deformation of a material under constant stress. This high resistance to creep is critical in applications such as the aerospace industry, where components are exposed to extreme heat for extended periods.

Additionally, TZM alloy rods possess superior thermal stability, meaning they retain their shape and mechanical properties without significant distortion or degradation. The alloy’s low thermal expansion ensures minimal dimensional changes, which is crucial when precision and durability are required.

Applications That Benefit from TZM Alloy’s Strength



Industries that operate under extreme heat environments have long used TZM molybdenum alloy rods due to their outstanding properties. One of the most common uses is in the aerospace sector, where TZM alloy rods are used in thrust chambers, rocket nozzles, and other high-heat components. The alloy’s ability to withstand intense temperatures without losing strength is vital for the performance and safety of space-bound vehicles.

Another significant application is in the nuclear industry. In nuclear reactors, materials must endure both high temperatures and radiation exposure. TZM alloy rods are ideal for these conditions, as they not only resist thermal stress but also maintain their integrity in radioactive environments.

In addition, molybdenum TZM alloy rods are commonly used in manufacturing high-temperature furnace components, such as heating elements, hot zones, and support structures. The alloy’s high thermal conductivity and resistance to thermal shock make it an excellent choice for these demanding applications.



How Does TZM Alloy Compare to Other High-Temperature Alloys?



Comparison with Pure Molybdenum



While pure molybdenum is often used in high-temperature environments, molybdenum TZM alloy rods offer several advantages. Pure molybdenum has excellent thermal conductivity and low thermal expansion, but its strength begins to weaken significantly in temperatures exceeding 1000°C. In contrast, TZM molybdenum alloy rods retain their strength at much higher temperatures due to the addition of titanium and zirconium. This makes TZM alloy more suitable for applications where components are subjected to sustained high-heat conditions.

Another difference is the recrystallization temperature. TZM alloy has a higher recrystallization temperature compared to pure molybdenum, which means it can maintain its mechanical properties for longer durations at higher temperatures. This property is particularly beneficial in industries such as aerospace or nuclear power, where materials are exposed to prolonged high-temperature cycles.



Comparison with Other Refractory Metals



Refractory metals such as tungsten, tantalum, and niobium are also used in high-temperature applications. However, TZM molybdenum alloy rods offer a balance of properties that make them more versatile in certain scenarios. Tungsten, for example, has a higher melting point than TZM alloy, but it is much denser, which can be a disadvantage in aerospace applications where weight is a critical factor.

Tantalum and niobium are known for their good performance in corrosive environments, but they are significantly more expensive compared to TZM alloy. Moreover, TZM molybdenum alloy rods have better availability and a more favorable cost-performance ratio, making them a popular choice for a wide range of high-temperature applications.

Longevity and Durability in Extreme Conditions



One of the key advantages of TZM molybdenum alloy rods over other high-temperature alloys is their longevity in extreme conditions. The addition of titanium and zirconium enhances the alloy’s resistance to oxidation and corrosion in high-temperature environments, which extends the lifespan of components. This durability reduces the need for frequent replacements, making TZM alloy rods a cost-effective solution for industries operating under high-stress conditions.

Additionally, TZM alloy’s superior resistance to thermal fatigue ensures that it can withstand repeated heating and cooling cycles without cracking or losing strength. This property is particularly important in applications such as high-temperature furnaces, where components are subjected to constant temperature fluctuations.

​​​​​​​

Conclusion

The strength of TZM molybdenum alloy rods at high temperatures makes them indispensable in industries requiring materials that can endure extreme heat without compromising performance. With tensile strengths ranging from 650 MPa at room temperature to 400 MPa at 1400°C, TZM alloy rods are well-suited for critical applications in aerospace, nuclear power, and high-temperature manufacturing. The alloy’s unique composition, combining molybdenum with titanium and zirconium, ensures superior thermal stability, creep resistance, and longevity under stress.
