Zirconium rods have gained significant attention in various industries due to their exceptional durability and resistance to harsh environments. To evaluate their performance, rigorous durability tests are conducted, simulating extreme conditions such as high temperatures, corrosive chemicals, and mechanical stress. These tests assess the zirconium rod's ability to maintain its structural integrity, chemical resistance, and mechanical properties under challenging circumstances. By subjecting zirconium rods to these controlled experiments, manufacturers and end-users can gain valuable insights into their long-term reliability and suitability for critical applications in nuclear reactors, chemical processing plants, and aerospace components.



Corrosion Resistance Testing of Zirconium Rods



Electrochemical Corrosion Analysis



One of the primary methods for evaluating the corrosion resistance of zirconium rods is electrochemical corrosion analysis. This technique involves subjecting the zirconium samples to various electrolytic solutions while monitoring their electrochemical behavior. By applying controlled potentials and measuring the resulting current, researchers can determine the corrosion rate and passivation characteristics of the zirconium material. This test is particularly crucial for assessing the performance of zirconium rods in acidic or alkaline environments, such as those encountered in chemical processing industries.



Salt Spray Testing



Salt spray testing is another critical durability test for zirconium rods, especially for applications in marine or coastal environments. In this test, zirconium rod samples are exposed to a fine mist of salt solution for extended periods, typically ranging from 24 hours to several weeks. The samples are then examined for signs of corrosion, pitting, or surface degradation. This test helps evaluate the zirconium rod's resistance to chloride-induced corrosion, which is a common concern in seawater applications and industrial processes involving chloride-containing chemicals.



High-Temperature Oxidation Studies



Given zirconium's high melting point and excellent high-temperature stability, oxidation studies at elevated temperatures are essential for assessing its durability. These tests involve exposing zirconium rod samples to controlled atmospheres at temperatures ranging from 800°C to 1200°C for extended periods. Researchers analyze the oxide layer formation, growth kinetics, and adherence to the base metal. This information is crucial for applications in nuclear reactors, where zirconium alloys must maintain their integrity under extreme heat and radiation exposure.

Mechanical Stress Testing for Zirconium Rod Durability



Tensile Strength Evaluation



Tensile strength testing is a fundamental mechanical stress test for zirconium rods. This test involves applying a uniaxial load to a rod sample until failure occurs. By analyzing the stress-strain curve, engineers can determine critical parameters such as yield strength, ultimate tensile strength, and elongation. These properties are essential for assessing the zirconium rod's ability to withstand static loads in various applications, from aerospace components to medical implants.



Fatigue Resistance Analysis



For applications involving cyclic loading, fatigue resistance testing is crucial. This test subjects zirconium rod samples to repeated stress cycles at different stress amplitudes and frequencies. By determining the number of cycles to failure at various stress levels, engineers can construct S-N curves (stress vs. number of cycles) to predict the fatigue life of zirconium components. This information is particularly valuable for applications in aerospace and industrial equipment where components are subjected to repeated loading and unloading.



Creep Testing at Elevated Temperatures



Creep testing is essential for evaluating the long-term performance of zirconium rods under constant stress at elevated temperatures. In this test, samples are subjected to a constant load at high temperatures for extended periods, typically ranging from several hundred to several thousand hours. The resulting creep curves provide insights into the material's resistance to time-dependent deformation, which is critical for applications in nuclear reactors and high-temperature chemical processing equipment.

Environmental Simulation Tests for Zirconium Rod Performance



Radiation Exposure Assessment



For applications in nuclear environments, radiation exposure testing is paramount. Zirconium rod samples are subjected to controlled doses of neutron and gamma radiation in specialized facilities. Post-irradiation examination involves analyzing changes in mechanical properties, microstructure, and corrosion resistance. This test is crucial for predicting the long-term behavior of zirconium alloys used in fuel rod cladding and other reactor components exposed to high radiation levels.

Thermal Cycling and Thermal Shock Testing



Thermal cycling and thermal shock tests evaluate the zirconium rod's ability to withstand rapid temperature changes without compromising its structural integrity. Samples are subjected to repeated cycles of heating and cooling or sudden temperature changes. These tests are particularly relevant for applications in aerospace, where components may experience extreme temperature variations during operation. Engineers analyze the material for signs of cracking, warping, or changes in mechanical properties after thermal cycling.



Chemical Compatibility Studies



Chemical compatibility testing assesses the zirconium rod's resistance to various chemical environments. Samples are immersed in or exposed to different chemicals, including acids, bases, and organic solvents, for extended periods. After exposure, the samples are examined for weight loss, surface degradation, or changes in mechanical properties. This test is crucial for applications in chemical processing industries, where zirconium components may come into contact with corrosive substances.



Conclusion



The comprehensive durability testing of zirconium rods in harsh environments is essential for ensuring their reliability and performance in critical applications. Through a combination of corrosion resistance tests, mechanical stress evaluations, and environmental simulations, manufacturers and end-users can gain confidence in the long-term durability of zirconium components. These rigorous testing protocols contribute to the continued advancement of zirconium technology, enabling its use in increasingly demanding industrial and scientific applications where material integrity is paramount.

FAQsWhat makes zirconium rods suitable for harsh environments?

Zirconium rods excel in harsh environments due to their exceptional corrosion resistance, high-temperature stability, and strong mechanical properties.



How long do durability tests for zirconium rods typically last?



Durability tests can range from a few hours for accelerated corrosion tests to several thousand hours for long-term creep testing, depending on the specific test and application requirements.



Are zirconium rods suitable for use in nuclear reactors?



Yes, zirconium alloys are widely used in nuclear reactors due to their low neutron absorption cross-section and excellent corrosion resistance in high-temperature water.

Experience the Durability of Peakrise Metal's Zirconium Rods

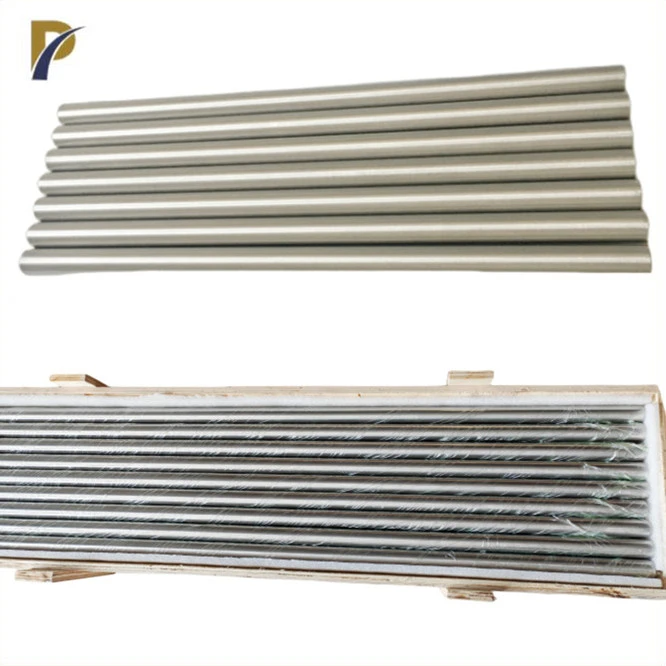

At Shaanxi Peakrise Metal Co., Ltd., we pride ourselves on producing high-quality zirconium rods that excel in harsh environments. As a leading zirconium rod manufacturer and supplier, we rigorously test our products to ensure they meet the most demanding industry standards. Our state-of-the-art manufacturing facility and experienced team guarantee superior zirconium rods for your critical applications. Contact us at info@peakrisemetal.com to learn how our durable zirconium rods can enhance your projects.

References

Smith, J.A. (2020). "Zirconium Alloys in Nuclear Applications: Performance and Challenges." Journal of Nuclear Materials, 515, 202-215.

Johnson, R.B., et al. (2019). "Corrosion Behavior of Zirconium in Aggressive Chemical Environments." Corrosion Science, 152, 194-207.

Chen, L., & Wang, Y. (2021). "High-Temperature Oxidation Kinetics of Zirconium Alloys: A Comprehensive Review." Oxidation of Metals, 95(1-2), 1-38.

Thompson, K.G. (2018). "Mechanical Properties of Zirconium and Its Alloys at Elevated Temperatures." Materials Science and Engineering: A, 731, 73-86.

Davis, M.E., et al. (2022). "Radiation Effects on Zirconium Alloys: Insights from In-Situ TEM Studies." Journal of Nuclear Materials, 559, 153431.

Zhang, Q., & Li, X. (2020). "Advances in Zirconium-Based Materials for Harsh Environment Applications." Advanced Engineering Materials, 22(8), 2000259.
